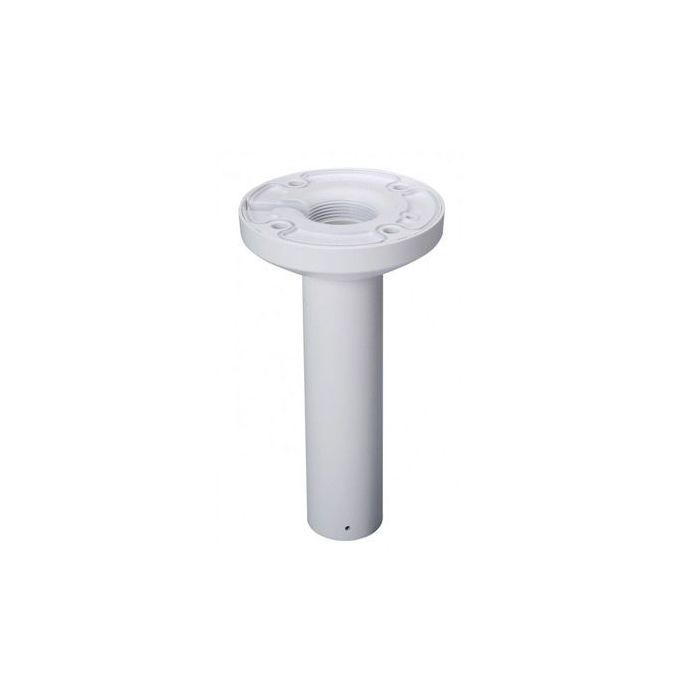

PFB300C Ceiling Mount Bracket
The PFB300C is a Dahua ceiling mount bracket for CCTV camera installations. It features aluminium and PC construction, dimensions of 133.6 mm diameter x 235.5 mm, and a maximum load capacity of 7.0 kg.
The bracket operates in temperatures from -40°C to +60°C and humidity levels below 90% RH. It includes a G1 1/2 inch thread and is compatible with Dahua camera models listed in the Camera Accessories Selection guide.
Key Features
- Ceiling mount format supports a neat camera mounting outcome
- Aluminium and PC construction gives the bracket a clearly specified build
- 133.6 mm diameter x 235.5 mm size helps installers plan fit and clearance before mounting
- 7.0 kg load rating provides a defined mounting limit for compatible camera setups
- -40 °C to +60 °C operating range supports use across demanding site temperatures
- Catalogue Family:
- CAMERA BRACKET
- Model:
- PFB300C
- Product Type:
- Camera Bracket
- Material:
- Aluminium
- Dimensions:
- 133.6 mm diameter x 235.5 mm
- Colour:
- White
- Load Bearing:
- 7.0 kg
- Weight:
- 0.78 kg
- Installation:
- Ceiling mount
- Thread:
- G1 1/2 inch
- Operating Temperature:
- -40 °C to +60 °C
- Humidity:
- 0-90% RH
- Applicable Model:
- Accessory Selection
