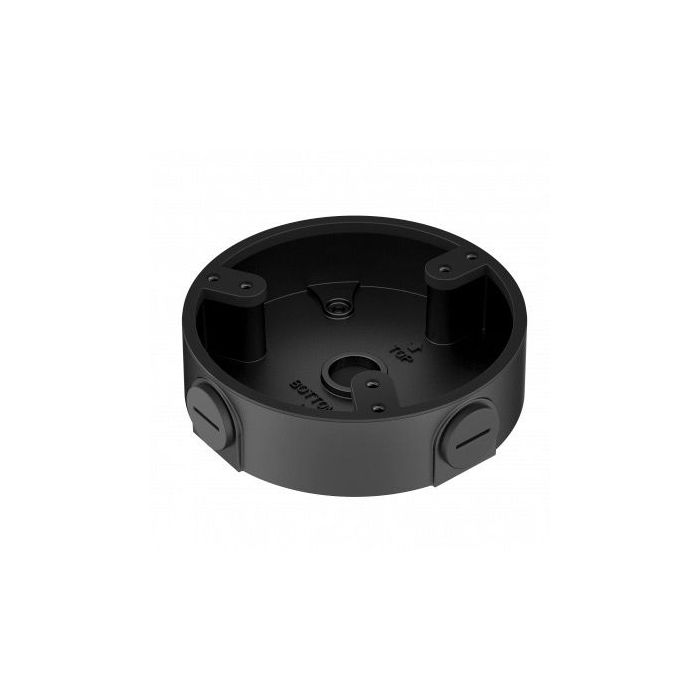

PFA137-B Dahua Water-proof Junction Box
The PFA137-B is a Dahua water-proof junction box for CCTV camera mounting applications. It features aluminium construction, an M20 G1/2 inch thread and a 1.0 kg load-bearing capacity.
It suits security installations where a dedicated Dahua camera accessory helps create a neater and more controlled mounting arrangement.
Key Features
- Waterproof junction box provides a secure mounting point for compatible camera installations.
- Aluminium construction offers a durable mounting solution.
- 122.0 mm diameter x 34.2 mm dimensions suit a range of installation locations.
- Supports camera assemblies up to 1.0 kg.
- M20 G1/2 inch thread supports compatible mounting interfaces.
- Catalogue Family:
- CAMERA BRACKET
- Model:
- DH-PFA137
- Product Type:
- Camera Bracket
- Material:
- Aluminium
- Dimensions:
- 122.0 mm diameter x 34.2 mm
- Inch Thread:
- M20 G1/2 inch
- Load Bearing:
- 1.0 kg
- Weight:
- 0.24 kg
- Operating Temperature:
- -40 deg C to +60 deg C
- Humidity:
- <90% RH
