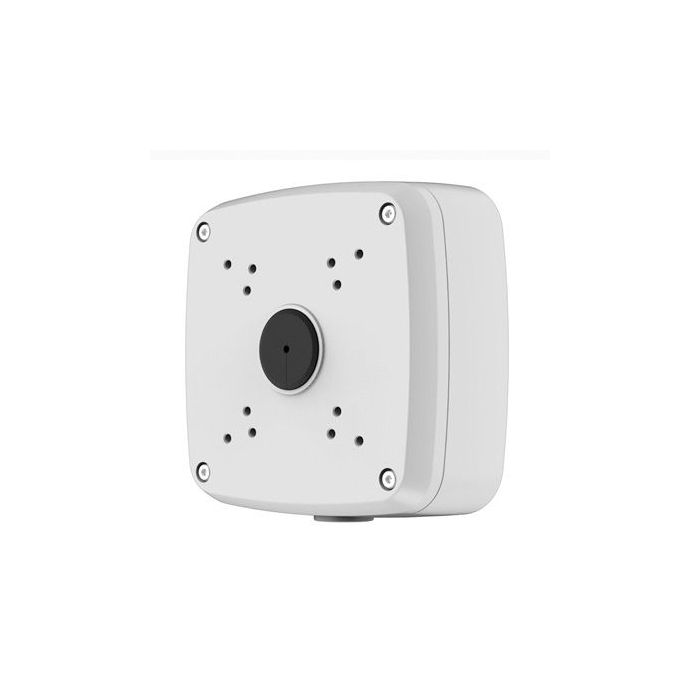

PFA121 Dahua DH-PFA121 IP66 Water-proof Junction Box - White
The PFA121 is a Dahua ip66 water-proof junction box for CCTV camera mounting applications. Aluminium IP66 junction box with G3/4 inch pipe thread white finish and 3.0 kg load bearing capacity.
It suits security installations where a dedicated Dahua camera accessory helps create a neater and more controlled mounting arrangement. It suits CCTV installations that need a confirmed IP66 junction-box accessory while still relying on Dahua accessory selection for exact camera matching.
Key Features
- Water-proof junction box format supports a cleaner mounting point for PFA121 camera accessory installs.
- Confirmed aluminium construction keeps PFA121 material selection clear for installers.
- 134.0 mm x 133.5 mm x 56.0 mm dimensions help match PFA121 to available mounting space.
- 3.0 kg load bearing capacity helps assess PFA121 against the camera assembly.
- G3/4 inch thread detail helps coordinate PFA121 with compatible mount interfaces.
- Catalogue Family:
- CAMERA BRACKET
- Model:
- DH-PFA121
- Product Type:
- Camera Bracket
- Material:
- Aluminium
- Dimensions:
- 134.0 mm x 133.5 mm x 56.0 mm
- Pipe Thread:
- G3/4 inch
- Protection:
- IP66
- Load Bearing:
- 3.0 kg
- Weight:
- 0.54 kg
- Colour:
- White
- Operating Temperature:
- -40 deg C to +60 deg C
- Humidity:
- 0% to 90% RH
