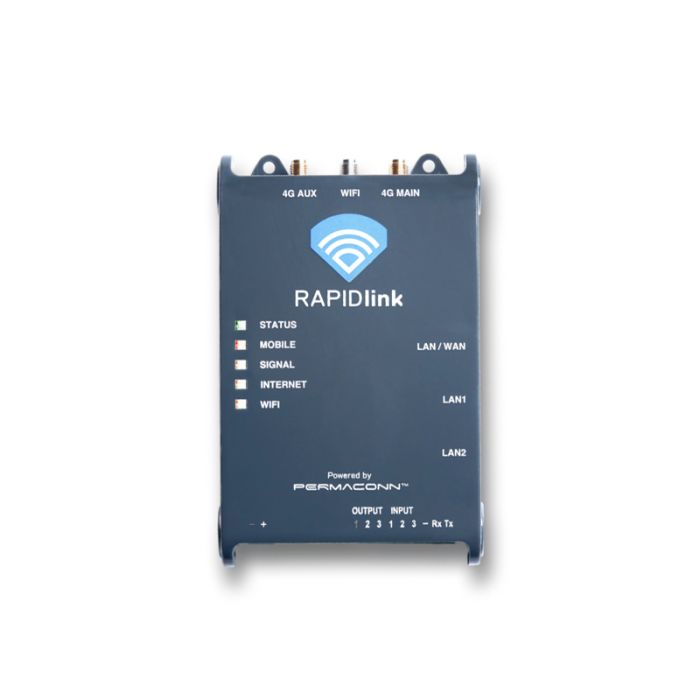

PERM-RL10 RAPIDlink RL10 Managed 4G LTE Router
The PERM-RL10 is a RAPIDlink RL10 managed 4G LTE router for remote networking applications. It features dual SIM operation, Ethernet connectivity, cellular and Wi-Fi antennas, digital inputs and outputs, and remote management through the RAPIDlink portal.
The router is designed for remote connectivity applications requiring managed 4G LTE communication, VPN access, mobile data connectivity, and remote configuration for compatible networked equipment.
Key Features
- Managed 4G LTE router supports remote connectivity where wired access is limited
- Dual SIM provisioning supports carrier diversity in managed deployments
- Automatic failover and failback from IP WAN to 4G supports continuity planning
- Inputs and outputs allow monitored-site status and control functions
- RAPIDlink portal and VPN capabilities support remote configuration and access
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Ethernet Interface:
- 10/100 Mbps
- Antennas:
- 2 x cellular 4G MIMO and 1 x 2.4 GHz Wi-Fi
- Antenna Cords:
- 3 x 640 mm with SMA connectors
- Router Dimensions:
- 110 mm H x 25 mm D x 80 mm W
- Router Weight:
- 180 g
- Mounting:
- Desktop, wall mounting and 2 x 20 mm x 2 mm magnets
- Power Supply:
- 10 to 15 V DC power adaptor
- Max Power Consumption:
- 1.5 W average with connection open on cellular network
- Inputs and Outputs:
- 3 inputs with EOL 3.3K; 3 open collector outputs at 50 mA max.
- Operating Temperature:
- 0 to 50 degrees C
