PERM-PM1048-4G Permaconn PM1048 Dual SIM Alarm Communicator with IP

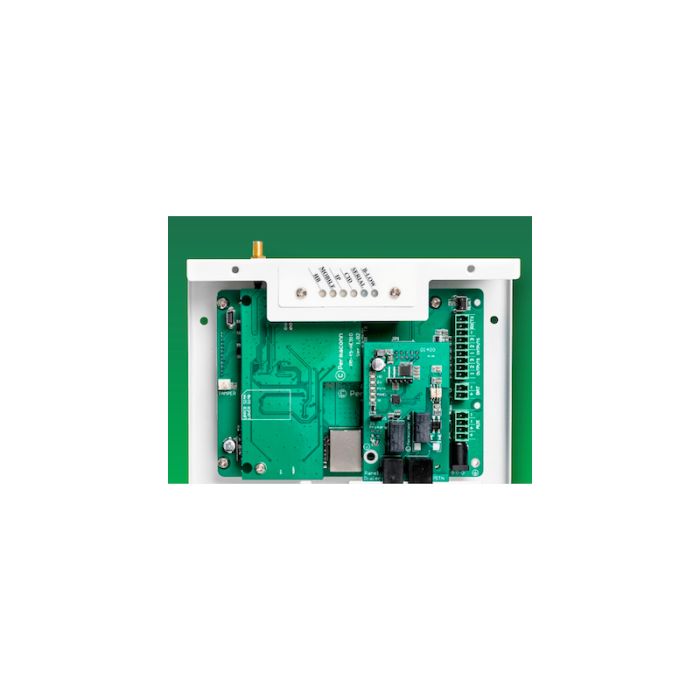

The PERM-PM1048-4G is a Permaconn PM1048 alarm communicator that supports alarm reporting over cellular, IP and optional PSTN communication paths. It interfaces with compatible alarm panels using RS232 or Contact ID and features a metal enclosure with monitored power, battery and interface status functions.
The communicator is designed for monitored alarm installations requiring supervised communication with a central monitoring station. It supports cellular and IP reporting for compatible alarm systems.
Key Features
- Dual SIM and IP alarm communicator
- Supports RS232 and Contact ID alarm panel interfaces
- Compatible with Atlas activation and diagnostic tools
- Integrated battery charger with backup battery support
- Monitors power, battery and interface status
- Catalogue Family:
- ALARM PANEL
- Product Type:
- Alarm Panel
- Communication Paths:
- Cellular, IP and optional PSTN in supplied PM1048 evidence
- Panel Interfaces:
- RS232 or Contact ID
- Communication Protocol:
- Ethernet 10/100BASE-T
- PCB Dimensions:
- 138 mm W x 100 mm H
- Weight:
- 1.00 kg
- Power:
- 14.5 V DC plug pack supplied
- Backup Battery:
- 12 V / 1.2 Ah sealed lead acid battery
- Typical Backup Time:
- 16 hours
- Auxiliary I/O:
- 3 inputs and 3 open collector outputs at 50 mA max.
