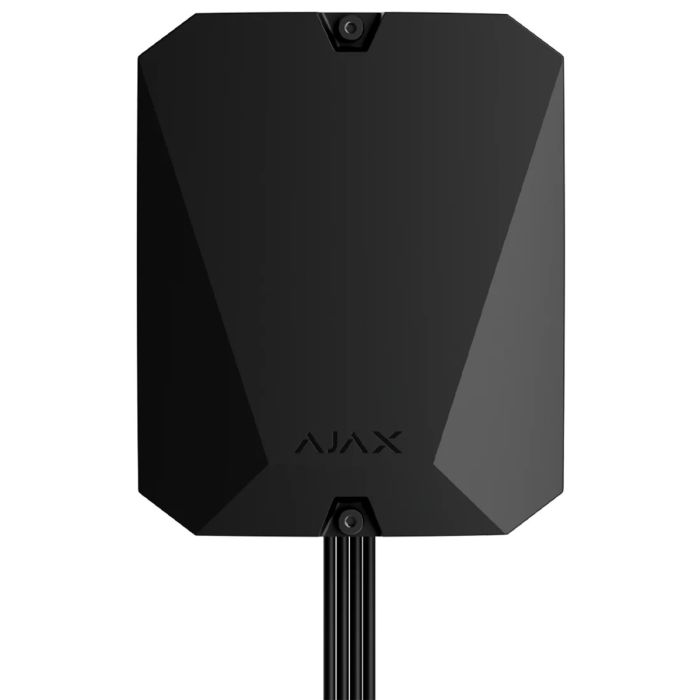

Ajax 143593 Superior Hub Hybrid 4G Dual SIM Ethernet 915MHz 8-Bus-Line Control Panel - Black
The Ajax Superior Hub Hybrid is a hybrid security system control panel that combines Fibra wired devices with Jeweller wireless devices in a single Ajax system. It supports photo verification and provides Ethernet and dual SIM connectivity, with automatic switching between available communication channels.
Fibra, Jeweller and Wings communication technologies enable the hub to exchange alarms, events, device status information and photo verification data with compatible Ajax devices. Encrypted two-way communication, device authentication and regular polling provide communication protection against interference and spoofing.
Key Features
- Support for Ajax Fibra wired and Jeweller wireless devices
- Wings technology for transmission of photos and large data packages for photo verification
- Ethernet and two SIM card connections with automatic communication channel switching
- Eight Fibra outputs supporting line and ring topologies
- Automatic line scanning for adding physically connected Fibra devices
- Tamper alarm, short-circuit detection, line-break detection and device authentication
- On-site or remote configuration and testing through Ajax system tools
- Automatic synchronisation with compatible central monitoring systems
- Catalogue Family:
- POWER SUPPLY
- Product Line:
- Superior
- Device Type:
- Hub Hybrid 4G control panel with standard casing
- Colour:
- Black
- Communication with Ajax Devices:
- Fibra, Jeweller and Wings technologies
- External Communication Channels:
- Ethernet 8P8C and two micro-SIM slots
- Cellular Network Support:
- 2G, 3G and 4G LTE
- Ajax Device Capacity:
- Up to 100 Ajax devices
- Fibra Outputs:
- 8 outputs, used as 8 lines or 4 rings
- Users:
- Up to 50
- Automation Scenarios:
- Up to 32
- Security Groups:
- Up to 9
- Event Log:
- Up to 1,000 events
- Main Power Supply:
- 100-240 V AC, 50/60 Hz
- Backup Battery Support:
- 4 Ah, 7 Ah or 9 Ah battery, not included; up to 60 hours with 7 Ah under conditions
- Dimensions:
- 197 x 240 x 100 mm
- Weight:
- 765 g
- Product Type:
- Power Supply
