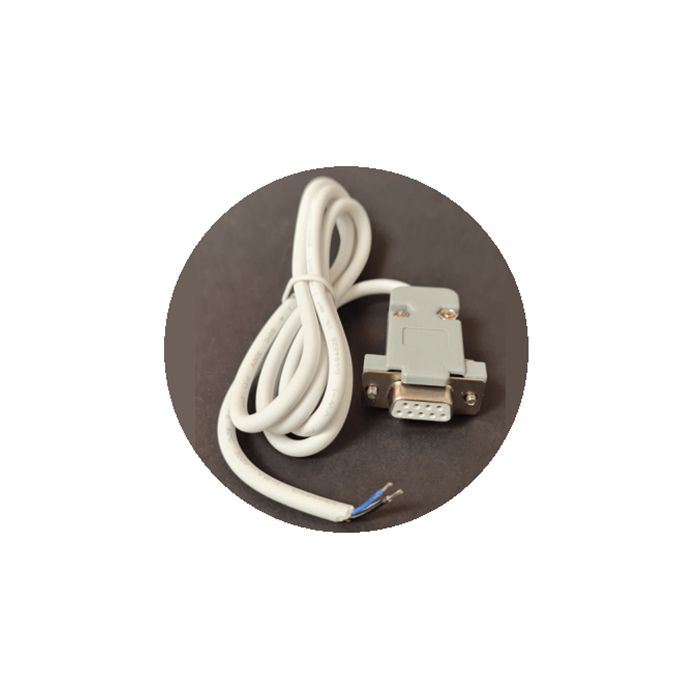

PERM-IFM-CDX Permaconn IFM-CDX Interface Lead for Cardax PM1048
The PERM-IFM-CDX is a Permaconn interface lead for Cardax/Gallagher FT controller integration with the PM1048 platform. It provides an RS232 serial communication interface between the Cardax panel and the PM1048 RX and TX terminals.
The interface lead is designed for use with compatible Cardax FT and PM1048 installations, supporting generic Contact ID reporting. Colour-coded wiring identifies the RX, TX and negative connections for installation.
Key Features
- Provides a defined serial interface path between Cardax FT equipment and PM1048
- Supports generic Contact ID reporting in the Cardax setup
- Colour-coded lead information helps reduce wiring ambiguity
- Useful for monitored alarm upgrades where panel interface status matters
- Catalogue Family:
- OTHER
- Product Type:
- Other
- Interface:
- RS232 serial data communication
- Communicator Context:
- PM1048 v3 3G/4G
- Controller Context:
- Cardax FT panel
- Blue Wire:
- Connect to RX
- White Wire:
- Connect to TX
- Black Wire:
- Connect to -ve
- Reporting Format:
- Generic Contact ID
