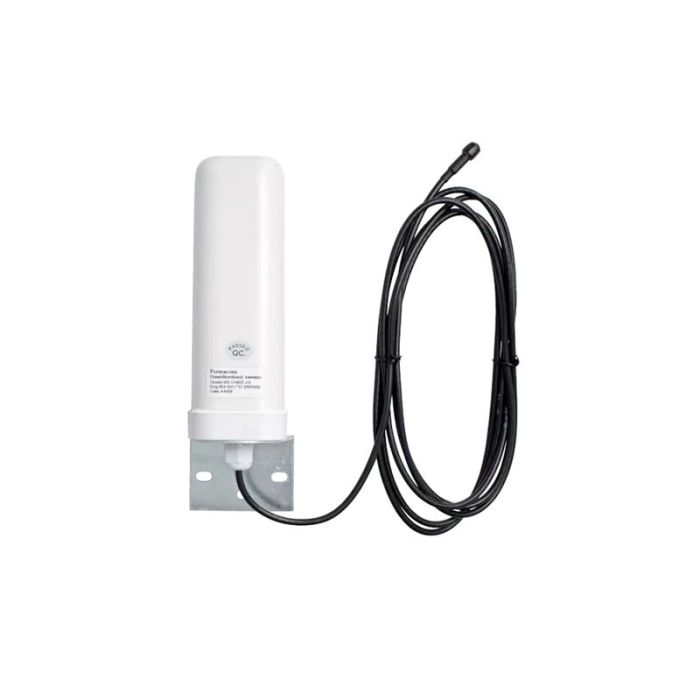

PERM-ANTH4G Permaconn High Gain 4G/3G Aerial
The PERM-ANTH4G is a Permaconn high gain aerial for 3G and 4G communicator installations. It is a dual-band antenna with an SMA male connector and low-loss cable for compatible Permaconn communicators.
The aerial includes a mounting bracket and 3 m cable for installation where improved antenna positioning or mobile signal reception is required. It also supports compatible extension cable installations within the specified limits.
Key Features
- High gain aerial supports improved mobile communicator signal placement
- 3G and 4G frequency coverage suits Permaconn communicator deployments
- Supplied bracket and cable support practical mounting away from the device
- SMA male connector provides the communicator antenna connection
- Extension-cable context supports longer antenna runs within the stated limit
- Catalogue Family:
- OTHER
- Product Type:
- Other
- Frequency:
- 800 to 2500 MHz
- Gain:
- 4/6 dBi depending on frequency
- Antenna Dimensions:
- 188 mm H x 65 mm diameter
- Bracket Dimensions:
- 75 mm W x 55 mm H x 80 mm D
- Cable and Plug:
- 3 m low-loss cable, SMA male
- Weight:
- 360 g
- Maximum Cable Distance:
- 13 m
