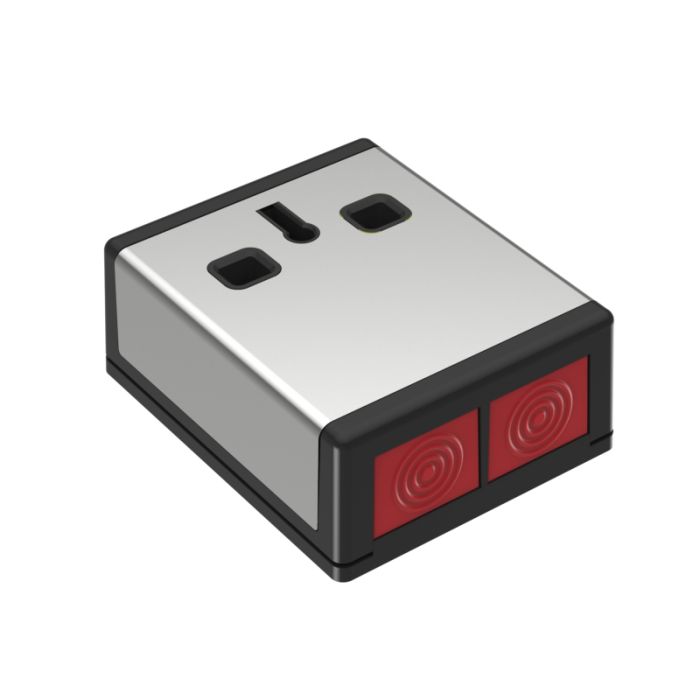

PAB5 CQR PADP3 Double Push Hold-Up Device
PAB5 is a CQR PADP3 double-push hold-up device for panic alarm applications, featuring two-button activation with selectable latching or non-latching operation.
The device supports end-of-line resistor selection, normally open or normally closed configuration, and key reset operation. It is suitable for Grade 3 security installations.
Key Features
- Two-button operation helps reduce accidental hold-up alarm activation.
- Selectable latching or non-latching operation allows configuration to suit site requirements.
- On-board end-of-line resistor options support alarm panel configuration.
- Key reset operation provides a controlled reset method after activation.
- Tamper and alarm microswitch arrangement supports monitored security applications.
- Catalogue Family:
- ALARM SWITCH
- Product Type:
- Alarm Switch
- Range:
- CQR PADP3
- Operation:
- 2 button, latching or non-latching
- Dimensions:
- 75 mm x 62 mm x 29.5 mm
- Case Material:
- ABS or ABS / 304 grade stainless steel
- Button Material:
- Acetal
- Reset Key:
- Steel
- Switch Rating:
- 3A 50V DC changeover
- Anti-Tamper:
- Normally closed tactile, 24V DC at 1A max
- Standards:
- EN50131-1:2006 + A1:2009 Grade 3, Environmental Class II
