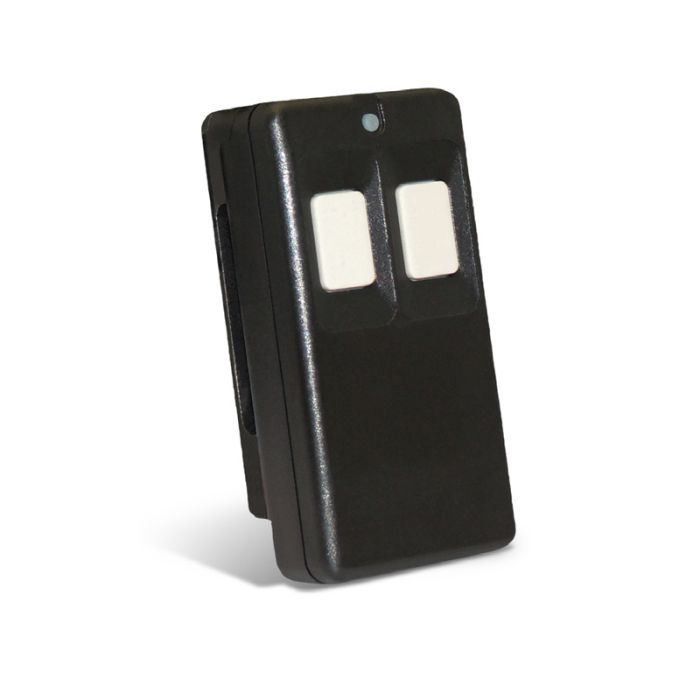

EN1235DF Double-Button Fixed Position Hold Up Transmitter
The EN1235DF is an Inovonics double-button fixed position hold up transmitter for secure alarm signalling. It combines a rugged double-button design with back tamper protection and EchoStream wireless transmission.
This fixed-position transmitter suits hold up and security points where accidental activation control and removal detection matter. LED feedback with each transmission, long battery life and listed compliance references support a disciplined commercial alarm installation.
Key Features
- Double-button activation helps minimise false alarm triggering
- Back tamper protection supports secure fixed-position alarm use
- LED feedback confirms transmissions during operation or testing
- Battery-powered EchoStream design reduces local wiring requirements
- Rugged compact form suits discreet hold up signalling points
- Catalogue Family:
- ALARM / INTRUSION
- Market:
- North America, Australia and New Zealand
- Echostream Frequency:
- 902-928 MHz frequency hopping spread spectrum
- Dimensions:
- 3.0 x 1.6 x 0.72 in (7.6 x 4.0 x 1.8 cm)
- Weight:
- 1.6 oz (45 g)
- Typical Battery Life:
- 3 to 5 years
- Internal Battery Type:
- Panasonic CR2
- Operating Temperature:
- 32 to 140 F (0 to 60 C)
- Humidity:
- Up to 90% non-condensing
- Check-In Time:
- 3 minutes
- Regulatory Compliance:
- FCC, RoHS, UL 365, UL 636, UL 1076 and UL 1610
- Product Type:
- Alarm / Intrusion
