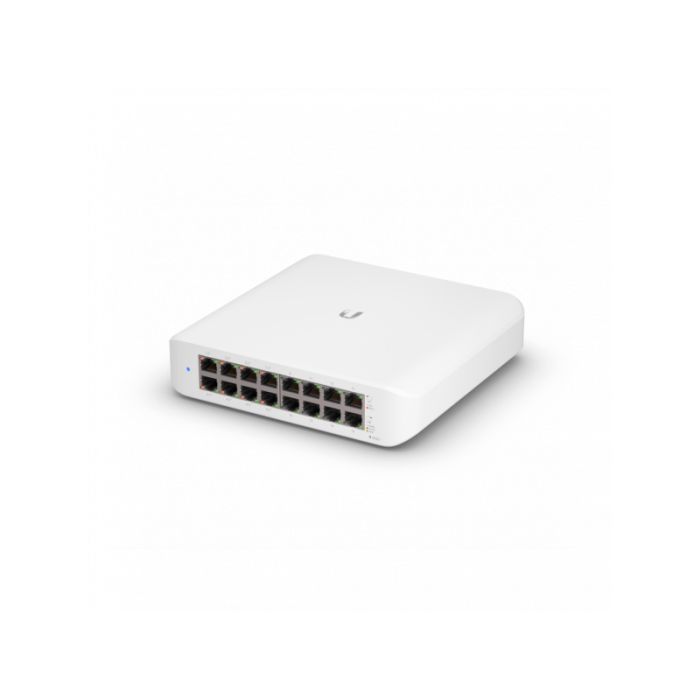

USW-Lite-16-PoE UniFi Switch Lite 16 PoE - 8 PoE+ Ports
The USW-Lite-16-PoE is a fully managed UniFi Layer 2 PoE switch with 16 GbE RJ45 ports, including eight 802.3at PoE+ ports. It features a 45W total PoE budget, 16 Gbps total non-blocking line rate, and an internal 60W AC/DC power supply.
Supports smaller UniFi access networks with a combination of Gigabit Ethernet and PoE+ ports for compatible powered devices. UniFi Network web and mobile app management provide centralised configuration and monitoring.
Key Features
- 16 Gigabit Ethernet RJ45 ports, including eight 802.3at PoE+ ports.
- Compact form factor for desktop or rack shelf installation.
- Layer 2 switching with UniFi Network management.
- Centralised configuration and monitoring through the UniFi Network web interface and mobile app.
- 45W total PoE budget for compatible powered devices.
- Catalogue Family:
- NETWORK SWITCH
- Dimensions:
- 191.7 x 185 x 43.7 mm
- Weight:
- 1.2 kg
- Networking Interfaces:
- (16) 10/100/1000 Mbps Ethernet RJ45
- PoE Interfaces:
- (8) PoE+ IEEE 802.3af/at
- Management Interface:
- Ethernet In-Band
- Mode:
- SMB Layer 2 PoE Gigabit Ethernet switch
- Total Non-Blocking Line Rate:
- 16 Gbps
- Power Method:
- Universal AC input 100-240VAC
- Power Supply:
- Internal 60W AC/DC power supply
- Max. Power Consumption:
- 15W
- Max. PoE+ Wattage per Port:
- 30W
- Total PoE Supply:
- 45W
- Operating Temperature:
- -15 to 40°C (5 to 104°F)
- Operating Humidity:
- 10 to 90% noncondensing
- Certifications:
- CE, FCC, IC
- Product Type:
- Network Switch
