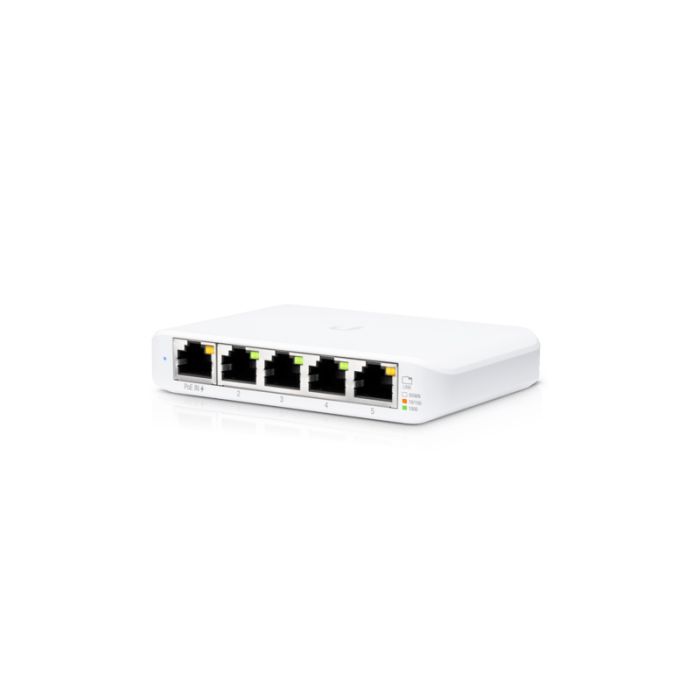

USW-Flex-Mini UniFi Flex Mini 5-Port Gigabit Switch - PoE or USB-C Powered
The USW-Flex-Mini is a compact UniFi Switch Flex Mini with five 10/100/1000 RJ45 ports and one port supporting 802.3af/at PoE input. Its hardware profile includes 5 Gbps total non-blocking throughput, 10 Gbps switching capacity, 7.44 Mpps forwarding rate, and a maximum power consumption of only 2.5W.
Its small desktop footprint makes it useful for adding managed Gigabit ports near workstations, printers, NAS devices, or entertainment equipment without installing a larger switch. Power by PoE or USB-C gives installers flexibility when expanding a UniFi-managed network in tight or low-power locations.
Key Features
- Adds five managed Gigabit ports in a compact desktop footprint.
- PoE or USB-C power options give flexibility for small network expansions.
- Low power draw supports efficient always-on switching for edge devices.
- UniFi controller access keeps monitoring and port setup within the wider network view.
- Line-rate switching capacity helps local wired devices communicate reliably.
- Catalogue Family:
- NETWORK SWITCH
- Dimensions:
- 107.16 x 70.15 x 21.17 mm
- Weight:
- 150 g
- Networking Interfaces:
- (5) 10/100/1000 RJ45 ports
- PoE In:
- 802.3af/at PoE
- Management Interface:
- Ethernet In-Band
- Total Non-Blocking Throughput:
- 5 Gbps
- Switching Capacity:
- 10 Gbps
- Forwarding Rate:
- 7.44 MPPS
- Power Method:
- USB TYPE-C 5V OR 802.3AF/AT POE
- Power Supply:
- 5V 1A POWER ADAPTER INCLUDED ONLY WITH SINGLE-PACK
- Max. Power Consumption:
- 2.5W
- Operating Temperature:
- -5 TO 45°C (23 TO 113°F)
- Operating Humidity:
- 10 TO 90% NONCONDENSING
- Certifications:
- CE, FCC, IC
- Product Type:
- NETWORK SWITCH
