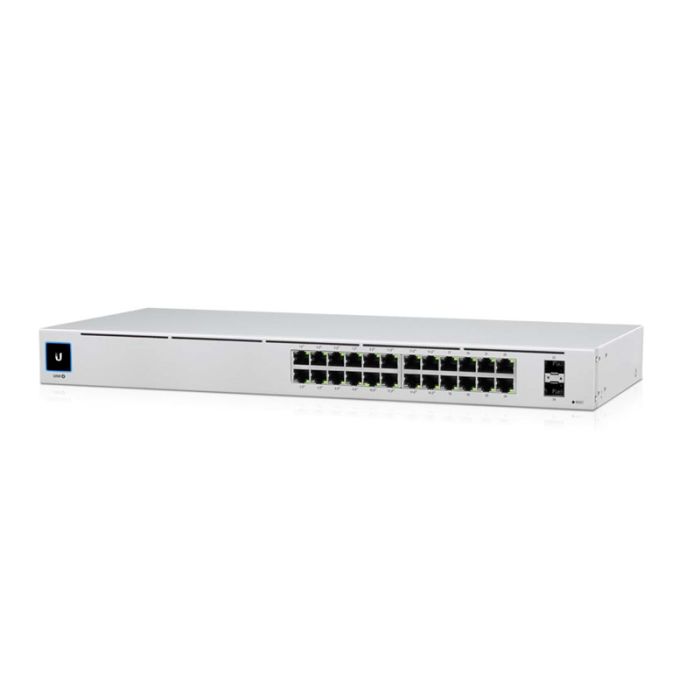

USW-24-PoE UniFi 24-Port PoE Gigabit Switch - 16 PoE+ Ports and 2 SFP Ports
The USW-24-PoE is a UniFi 24-port managed Gigabit PoE switch with 24 RJ45 Ethernet ports and two 1G SFP ports. It supports 16 IEEE 802.3af/at PoE+ ports, a 95 W total PoE budget, 26 Gbps non-blocking throughput and 52 Gbps switching capacity.
Supports UniFi Network Controller management for port configuration, VLAN management, status monitoring and traffic visibility.
Key Features
- Combines Gigabit access switching and PoE delivery in one managed UniFi device.
- SFP uplink options support cleaner handoff to fibre or upstream network equipment.
- Line-rate forwarding capacity helps the switch handle busy access-layer traffic.
- Quiet fanless cooling supports deployment in noise-sensitive work areas.
- Controller-based management keeps port configuration and monitoring centralised.
- Catalogue Family:
- NETWORK SWITCH
- Dimensions:
- 442.4 x 200 x 43.7 mm
- Weight:
- 3.00 kg; 3.09 kg with brackets
- Networking Interfaces:
- (24) 10/100/1000 RJ45 ports; (2) 1G SFP Ethernet ports
- Management Interface:
- Ethernet In-Band
- Total Non-Blocking Throughput:
- 26 Gbps
- Switching Capacity:
- 52 Gbps
- Forwarding Rate:
- 38.69 Mpps
- Power Method:
- 100-240VAC 50/60 Hz universal input
- Power Supply:
- AC/DC internal 120W
- Max. Power Consumption:
- 25W excluding PoE output
- Total Available PoE:
- 95W
- PoE Interfaces:
- Ports 1-16 PoE+ IEEE 802.3af/at
- Max. PoE Wattage per Port:
- 32W
- Operating Temperature:
- -5 to 40°C (23 to 104°F)
- Operating Humidity:
- 10 to 90% noncondensing
- Certifications:
- CE, FCC, IC
- Product Type:
- Network Switch
