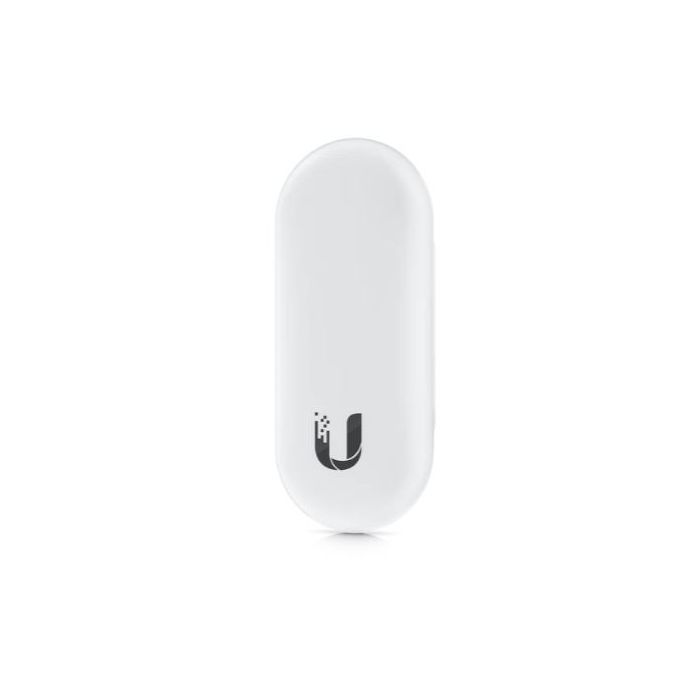

UA-Lite Ubiquiti UniFi Access Reader Lite
The UA-Lite is a Ubiquiti UniFi Access Reader Lite for wall-mounted access control points. It uses 10/100 Mbps Ethernet, BLE 4.1, NFC and 802.3af PoE in a compact reader enclosure with IP54 rating.
Designed for UniFi Access systems, it supports NFC credential reading with ISO 14443A, 14443B and 15693 standards and a stated read range under 30 mm. Its compact form and PoE power suit straightforward entry reader installations.
Key Features
- Compact wall-mounted reader suits clean UniFi Access entry points.
- 802.3af PoE power simplifies reader cabling and installation.
- NFC and BLE connectivity support modern credential interaction.
- IP54 rating gives added flexibility for protected reader locations.
- Small 65 g body helps keep the access reader unobtrusive.
- Catalogue Family:
- READERS
- Model:
- UA-Lite
- Dimensions:
- 94.91 x 40.00 x 31.10 mm
- Weight:
- 65 g
- Mounting Options:
- Wall-mount
- Networking Interface:
- 10/100 Mbps Ethernet
- Max. Power Consumption:
- 6 W
- Power Method:
- 802.3af PoE
- IP Rating:
- IP54
- Connectivity:
- Ethernet, BLE 4.1
- NFC Frequency:
- 13.56 MHz
- NFC Read Range:
- Less than 30 mm
- NFC Standards:
- ISO 14443A, 14443B, 15693
- Operating Temperature:
- -40 to 40 C
- Operating Humidity:
- 5 to 90% noncondensing
- Certifications:
- CE, FCC, IC
- Product Type:
- Readers
