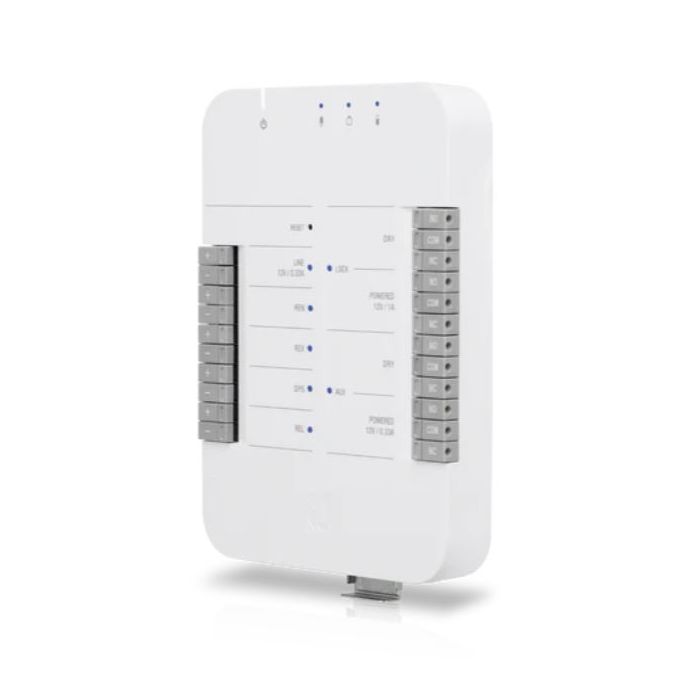

UA-Hub Ubiquiti UniFi Access Hub
The UA-Hub is a Ubiquiti UniFi Access Hub for access control installations powered by 802.3bt PoE. It supports electric bolts, electric strikes, magnetic locks, and 12 V access control accessories including motion sensors, push buttons, and alarms.
The hub provides four 1 Gbps Ethernet interfaces, DIN rail mounting, input terminals for request and door-position signals, and dry and powered relay outputs. It is suitable for single-door UniFi Access installations with readers, locks, and access control accessories.
Key Features
- PoE-powered hub for UniFi Access door control systems.
- Four 1 Gbps Ethernet interfaces for connected access devices.
- Dry and powered relay outputs for lock and auxiliary device connections.
- DIN rail mounting for access control cabinet installation.
- Input terminals for request-to-exit, request-to-enter, and door-position signals.
- Catalogue Family:
- ALARM SWITCH
- Model:
- UA-Hub
- Dimensions:
- 190 x 126 x 33 mm
- Weight:
- 457 g
- Enclosure Characteristics:
- Plastic enclosure with metal mount plate
- Mounting Options:
- DIN rail
- Networking Interface:
- (4) 1 Gbps Ethernet
- Max. Power Consumption:
- 40 W
- Power Method:
- 802.3bt PoE
- Input Terminals:
- REX request to exit; REN request to enter; REL remote release; DPS door position sensor
- Dry Output Relay:
- Lock and Aux rated 30 VDC, up to 1 A
- Powered Output Relay:
- Lock 12 VDC up to 1 A; Aux 12 VDC up to 0.33 A; Line 12 VDC up to 0.33 A
- Operating Temperature:
- 0 to 40 C
- Operating Humidity:
- 5 - 90% noncondensing
- Certifications:
- CE, FCC, IC
- Product Type:
- Alarm Switch
