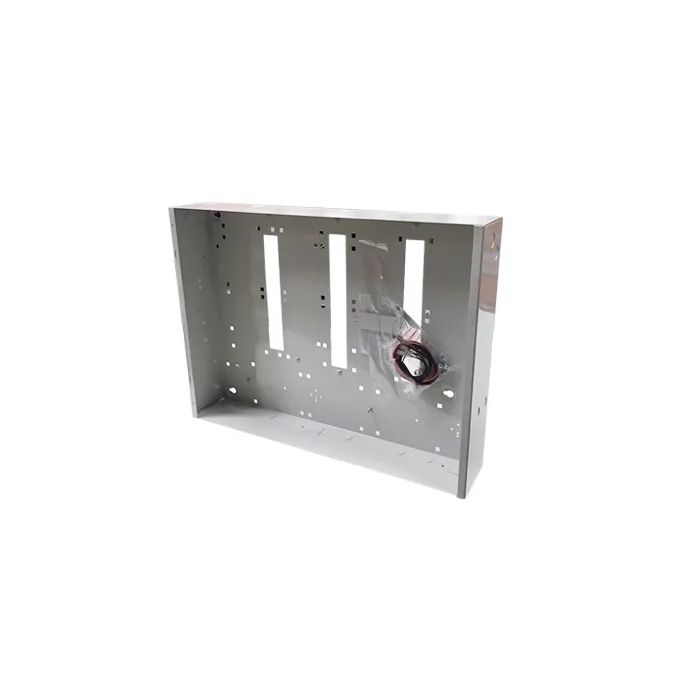

MW730B Bosch Large Metal Enclosure - 520 H x 385 W x 90 D mm
The MW730B is a Bosch large metal enclosure for Solution 6000, Solution 16i, Solution 16plus and Solution 64 systems. It provides a 520 H x 385 W x 90 D mm housing with space for 4 large modules or 8 small modules, supporting larger panel and module layouts.
Designed for wall mounting, the enclosure allows large and small units to be mounted together in a neat arrangement. Modules are fitted using 4 or more clip-in standoffs, which can be inserted from the rear before the enclosure is mounted or from the front after it is on the wall.
Key Features
- Helps house compatible Bosch Solution panel modules in one large metal enclosure
- Supports flexible arrangements for large, small or mixed module layouts
- Wall-mount format helps keep compatible panel hardware organised in one location
- Clip-in standoff mounting supports module fitting before or after wall installation
- Provides a clearly sized enclosure option for builds needing 520 H x 385 W x 90 D mm capacity
- Catalogue Family:
- ALARM / INTRUSION
- Model:
- MW730B
- Product Type:
- Alarm / Intrusion
- Compatible Systems:
- Solution 6000, Solution 16i, Solution 16plus and Solution 64
- Dimensions (H X W X D):
- 520 x 385 x 90 mm
- Module Capacity:
- 4 large modules or 8 small modules
- Mounting:
- Wall Mount
- Module Mounting:
- 4 or more clip-in standoffs per module
- Standoff Access:
- Inserted from rear before wall mounting or from front after wall mounting
