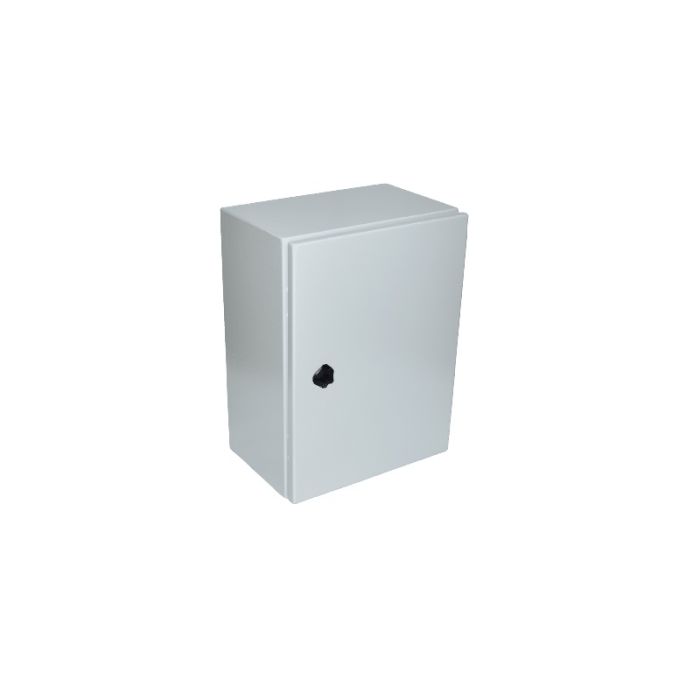

MSB604020 Mild Steel Enclosure - 600 x 400 x 200mm
The MSB604020 is a mild steel enclosure with a 600 x 400 x 200mm body size. It features 1.5mm powder-coated mild steel construction, an IP66 and IK10 rated enclosure, a RAL7035 finish, and an installed galvanised mounting plate.
The enclosure is suitable for electrical, security and control installations requiring a compact enclosure with no external branding, a reversible door, and internal mounting support. Earth studs and door cable-management features assist with organised equipment installation and field wiring.
Key Features
- IP66 and IK10 rated mild steel enclosure for equipment protection.
- Supplied with an installed galvanised mounting plate.
- Reversible door supports flexible installation.
- No external branding or markings for a discreet appearance.
- Suitable for electrical, security and control equipment installations.
- Catalogue Family:
- ENCLOSURES
- Model:
- MSB.604020
- Size (H X W X D):
- 600 x 400 x 200mm
- Product:
- IP66, 1.5mm mild steel enclosure
- Ratings:
- IP66, IK10
- Material:
- Metal
- Colour:
- RAL7035
- Mounting Plate:
- Galvanised mounting plate installed
- Door:
- Reversible door
- Product Type:
- Enclosures
