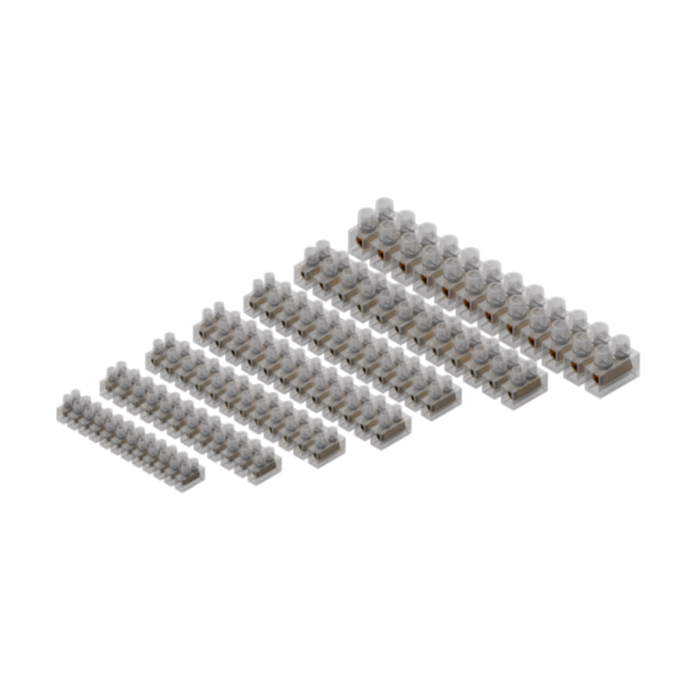

STC-M4/3A Strip Connector 4mm2 Natural 3 Amp
The STC-M4/3A is a natural 12-pole / 2-way strip connector for 4 mm2 cable with a 3 Amp rating. It features a solid brass connector, 380 V rating and operating temperature up to 90 DegC.
The strip connector has a 3.0 mm cable entry, dimensions of 93(L) x 13.5(H) x 17(W) mm, 8 mm mounting spacing, solid brass connector, flexible and pliable housing material, and flat-head screws.
Key Features
- 12-pole / 2-way strip connector for 4 mm2 cable applications.
- Flexible and pliable housing material.
- Flat-head screw termination.
- Compact dimensions.
- 3 Amp rated strip connector with natural housing.
- Catalogue Family:
- TOOLS & INSTALLATION ACCESSORIES
- Product Type:
- Tools & Installation Accessories
- Code:
- STC-M4/3A
- Product:
- 4 mm2 - Natural
- Amp Rating:
- 3 Amp
- Voltage:
- 380 V
- Temperature Rating:
- Up to 90 deg C
- Connector Material:
- Solid brass
- Dimensions:
- 93(L) x 13.5(H) x 17(W) mm
- Cable Entry:
- 3.0 mm
- Mounting Spacing:
- 8 mm
- Packing:
- 10
- Carton Quantity:
- 1000
