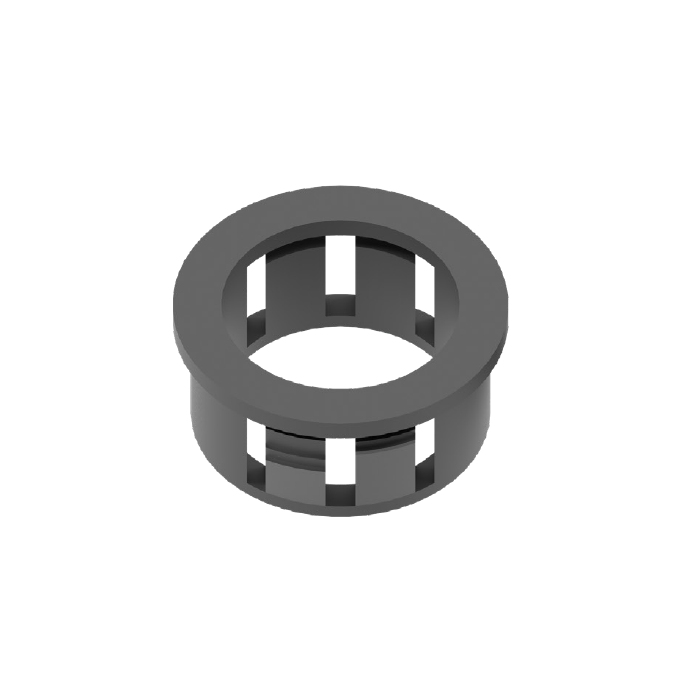

MTLBUSH-M25/S Snap Bushing Nylon Black - 25 mm
MTLBUSH-M25/S is a black nylon snap bushing for protecting electrical cables through holes in sheet metal. It is manufactured from Nylon 66, is halogen-free, UL approved, and suits a 25.4 mm mounting hole.
Dimensional measurements support selection for the required panel hole and cable size.
Key Features
- Protects electrical cables from sharp sheet-metal hole edges
- Fingertip-pressure locking supports a straightforward push-in installation method.
- Nylon 66 construction.
- UL approved, halogen-free Nylon 66 construction with a 94 V-2 flammability rating
- Suits 25.4 mm mounting holes.
- Catalogue Family:
- TOOLS & INSTALLATION ACCESSORIES
- Product Type:
- Tools & Installation Accessories
- Material:
- Plastic
- Flammability:
- 94 V-2
- Approval:
- UL approved
- Mounting Hole:
- 25.4 mm
- A Dimension:
- 19.5 mm
- B Dimension:
- 28.5 mm
- C Dimension:
- 11.7 mm
- D Dimension:
- 1.8 mm
- Packing:
- 100
- Carton Quantity:
- 5500
