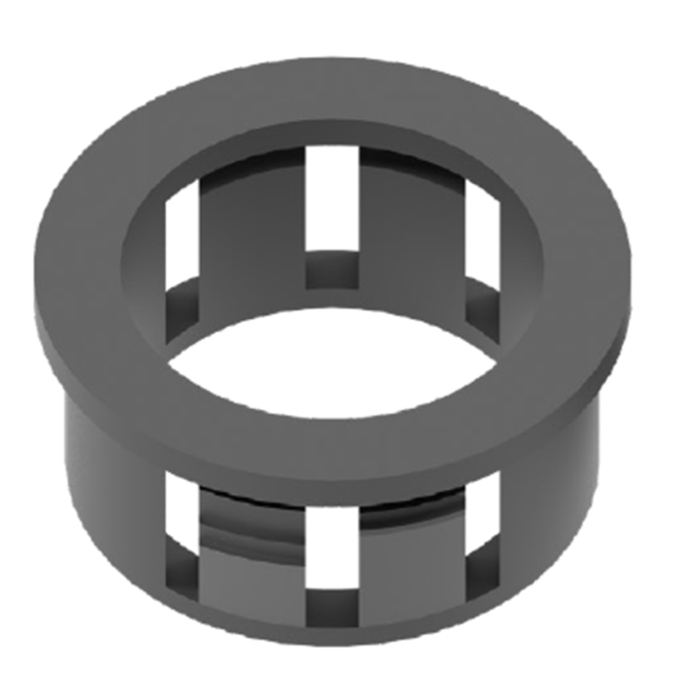

MTLBUSH-M20/S Snap Bushing Nylon Black - 20 mm
The MTLBUSH-M20/S is a black nylon snap bushing manufactured from Nylon 66 for protecting electrical cables passing through sheet metal. It is halogen-free, UL approved and suits 20 mm mounting holes.
It is intended to protect cables from sharp panel edges in sheet-metal and electrical enclosures.
Key Features
- Protects electrical cables from sharp sheet-metal hole edges
- Fingertip-pressure locking supports a straightforward push-in installation method.
- Nylon 66 construction.
- UL approved, halogen-free Nylon 66 construction with a 94 V-2 flammability rating
- Suits 20 mm mounting holes.
- Catalogue Family:
- TOOLS & INSTALLATION ACCESSORIES
- Product Type:
- Tools & Installation Accessories
- Material:
- Plastic
- Flammability:
- 94 V-2
- Approval:
- UL approved
- Mounting Hole:
- 20 mm
- A Dimension:
- 15.9 mm
- B Dimension:
- 22.4 mm
- C Dimension:
- 10 mm
- D Dimension:
- 1.4 mm
- Packing:
- 100
- Carton Quantity:
- 9500
