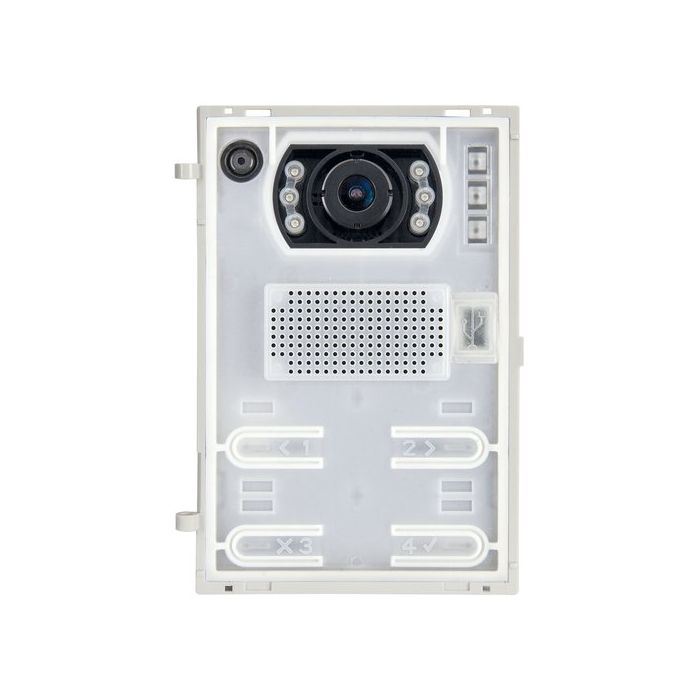

ELV41006 Pixel IP Wide-Angle Audio Video Teleloop Module
ELV41006 is an IP audio/video electronic module for Vimar Elvox Pixel Series modular entrance panels with a wide-angle colour camera, teleloop support, PoE Class 0 power, white LED illumination, automatic brightness adjustment, echo cancellation, automatic speaker gain control, and four front call buttons.
Suitable for IP-based Pixel door entry installations requiring audio/video communication, signalling, and electric lock control. Features IP54-rated protection and a 104 degree horizontal field of view at 1 m.
Key Features
- Combines IP audio, video and entrance signalling in a single Pixel electronic module.
- Wide-angle camera coverage helps capture visitors at typical entrance-panel height.
- PoE supply simplifies power and network planning for compatible IP installations.
- Teleloop and voice synthesis functions support more accessible entry communication.
- Expandable push-button management helps the module serve larger panel layouts when configured.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Panel Range:
- Pixel Series
- Power Supply:
- Power-over-Ethernet Class 0, IEEE 802.3-2012
- Average PoE Consumption:
- 10 W
- Additional Module Current:
- 500 mA maximum to back panel, up to 8 additional modules
- Protection Rating:
- IP54
- Impact Rating:
- IK08 for Pixel; IK10 for Pixel Heavy
- Operating Temperature:
- -25 °C to +55 °C
- Camera Field of View:
- 104° horizontal, 129° diagonal, 83° vertical
- Call Management:
- Up to 84 push button calls with up to 8 additional 41010 modules
