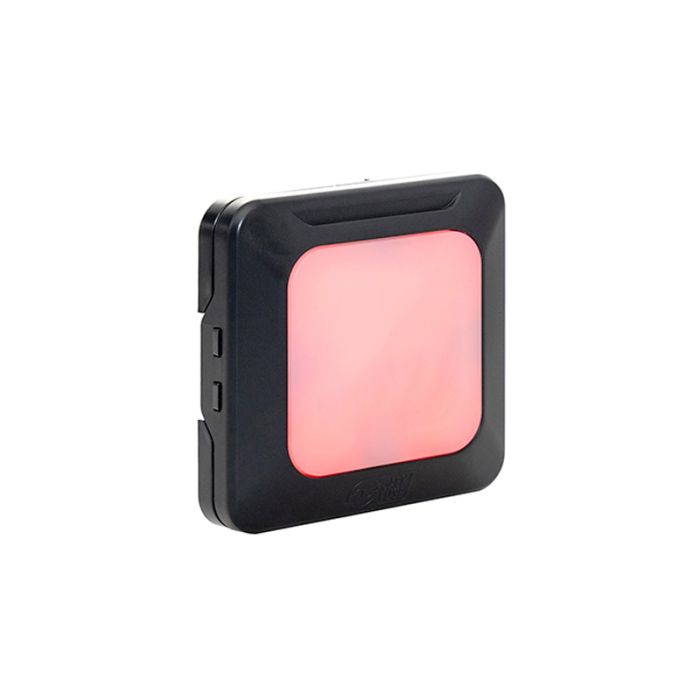

LODESTAR-C Lodestar Alarm Status Indicator - Charcoal
The LODESTAR-C is the charcoal Jack Fuse Lodestar, a multi-colour audiovisual alarm status indicator for security and alarm applications. It provides seven LED colours, an adjustable sounder, backlit icons and selectable flashing or solid indication.
Its low-profile housing, wide viewing angle and wall or ceiling mount suitability make it practical for visual and audible status points. Application examples include door-open alarms, duress indication, armed/disarmed/alarm status, nurse call, laboratory alarm and BMS alert use.
Key Features
- Multi-colour LED indication supports clear alarm and status differentiation
- Adjustable sounder adds audible alerting alongside visual indication
- Backlit adhesive icons help match the indicator to the alarm scenario
- Charcoal low-profile case supports a tidy wall or ceiling mounted finish
- Wide viewing angle improves visibility across practical installation positions
- Catalogue Family:
- SCREAMERS & STROBES
- Product Type:
- Screamers & Strobes
- Model:
- Lodestar-C
- Colour:
- Charcoal
- LED Colours:
- Seven
- Operating Voltage:
- 9-28 VDC
- Recommended Cable:
- Six core security (14/020)
- Conductor Size:
- 1.5 mm2 (28-16 AWG)
- Dimensions:
- 87 x 87 x 26 mm
- Sounder:
- Approximately 80 dB adjustable
- Primary Materials:
- Polycarbonate, Polyamide 46 and fiberglass
- Maximum Power:
- 35 mA at 12 VDC maximum with buzzer and three LEDs
