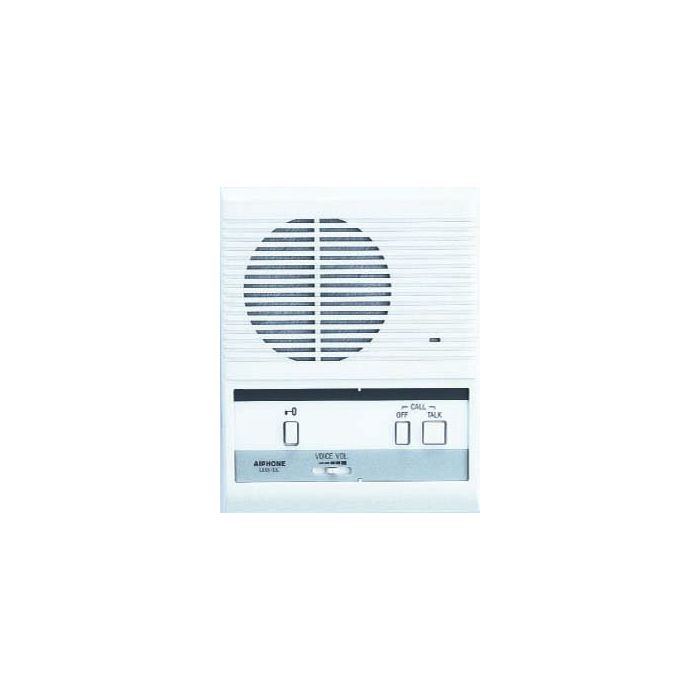

LEM-1DL Aiphone Access Sentry 1-Call Master Station with Door Release
The LEM-1DL is an Aiphone Access Sentry 1-call master station with a door release button for a two-station entry control system. It features push-to-talk, release-to-listen communication, speech volume control and a call tone from the door station.
Designed for small offices, retail premises and back-door entry points, the master station supports communication with a compatible door station and door release control. It can be desk or wall mounted and supports AC or DC power with two-wire communication and separate door-release wiring.
Key Features
- Combines master-station audio communication and door release control.
- Push-to-talk, release-to-listen operation provides controlled two-way communication.
- Three-position call-tone volume adjustment.
- Desk or wall mounting provides installation flexibility.
- Designed for two-station Access Sentry entry control systems.
- Catalogue Family:
- INTERCOM
- Model:
- LEM-1DL
- Product Type:
- Intercom
- System Type:
- Access Sentry two-station entry control system
- Power Source:
- AC 12-16V or DC 12-24V
- Consumption:
- Max. 4 W at AC 16V; max. 200 mA at DC 24V
- Communication:
- Push-to-talk, release-to-listen at master with speech volume control
- Output:
- 100 mW
- Wiring:
- 2 wires non-polarised plus 2 wires for door release
- Door Release Contact Capacity:
- Max. AC 30V, 1A or max. DC 30V, 1A
- Wiring Distance:
- 120 m with 0.5 mm cable; 200 m with 0.65 mm; 300 m with 0.8 mm; 480 m with 1.0 mm; 720 m with 1.2 mm
- Dimensions:
- 180 H x 143 W x 55 D mm
- Weight:
- Approx. 340 g
