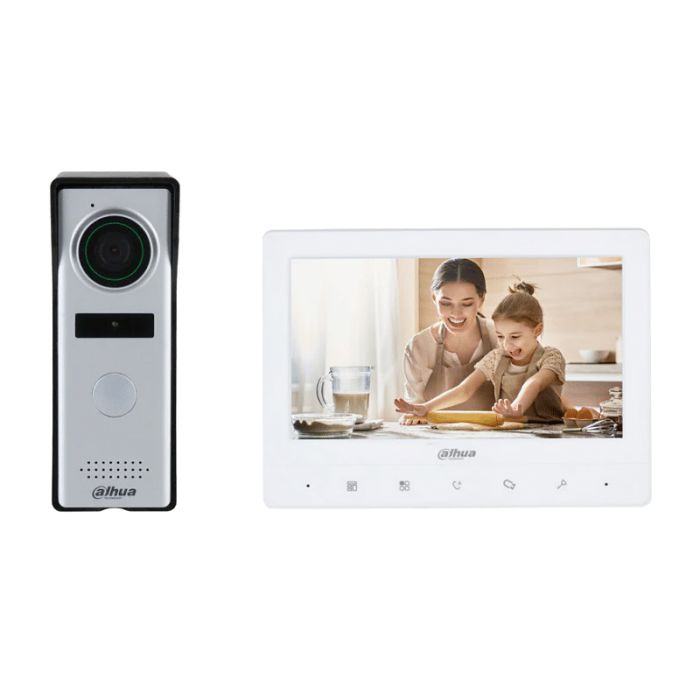

KTA02 Dahua Video Intercom Kit - 7 inch TFT
The KTA02 is a Dahua DHI-KTA02 video intercom kit featuring a 7 inch TFT indoor monitor and matching door station. It supports analogue communication with video intercom functions including unlock, voice call, video call and volume adjustment.
Designed for door entry applications, the kit includes a surface-mounted indoor monitor and door station for visitor communication and door release control. The system supports up to 2 door stations and 3 indoor monitors. The door station features DWDR, auto IR illumination, ICR day/night switching and an IP66 protection grade when gaps between the device and wall are properly sealed.
Key Features
- Combines visitor video, voice communication and unlock control in one intercom kit
- 7 inch TFT indoor monitor provides a clear interface for day-to-day entry management
- Expandable system capacity supports up to 2 door stations and 3 indoor monitors
- Door station imaging features help maintain visibility across changing light conditions
- Surface-mount design and included accessories support a tidy installation setup
- Catalogue Family:
- INTERCOM
- Model:
- DHI-KTA02
- Product Type:
- Intercom
- Indoor Monitor:
- VTH1020J
- Door Station:
- VTO1000J
- Display:
- 7.0 inch TFT
- Screen Resolution:
- 1024 x 600
- Communication Mode:
- Analogue
- System Capacity:
- 2 door stations + 3 indoor monitors
- Video Intercom Functions:
- Unlock, voice call, video call, volume adjustment
- Door Station Camera:
- 1.3 MP CMOS
- Door Station Field of View:
- Horizontal 70°, vertical 40°
- WDR:
- DWDR
- Door Station Protection Grade:
- IP66 when gaps between device and wall are sealed as instructed
- Power Supply:
- Indoor monitor: DC 12 V/1 A; door station: powered by indoor monitor
- Installation:
- Surface mount
- Certifications:
- CE/FCC
- Included Accessories:
- Indoor monitor bracket and door station rain cover
- Indoor Monitor Dimensions:
- 133.90 mm x 182.70 mm x 17.70 mm
- Door Station Dimensions:
- 131.45 mm x 46.00 mm x 33.80 mm
