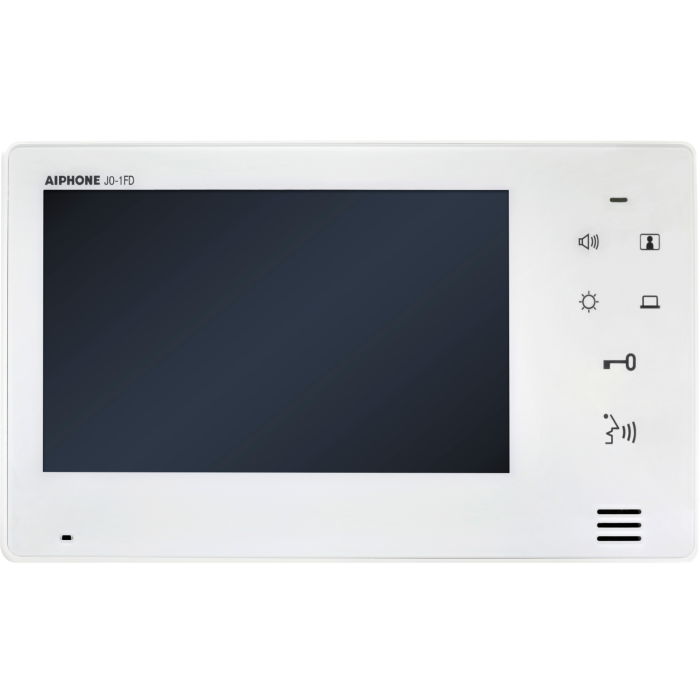

JO-1FD Aiphone JO Series Video Expansion Station - 7 in Screen
The JO-1FD is an Aiphone JO Series video expansion station for use with JO-1MD or JO-1MDW master stations. It provides a 7 in TFT screen, slim wall-mounted design, electrostatic touch buttons and hands-free or push-to-talk communication.
It suits JO systems that need a second room station for answering visitors, viewing the door station and operating door release from another location. The station is installed between the JO door station and master station, using two conductors to the door and six conductors to the master.
Key Features
- Adds a second JO room station where another indoor answering point is needed.
- 7 in TFT display gives a clear view of visitor video from the door station.
- Hands-free or push-to-talk modes let users choose the right communication style.
- Monitor and door release buttons support everyday entry control from the expansion station.
- Wall mounting on a 3-gang box keeps the indoor station tidy and serviceable.
- Catalogue Family:
- INTERCOM
- Model:
- JO-1FD
- Product Type:
- Intercom
- Power Source:
- 18V DC, PS-1820UL
- Current Consumption:
- Maximum 420 mA
- Dry Contacts:
- N/O 24V AC/DC, 500 mA
- Communication:
- Auto-voice actuation or push-to-talk
- Monitor:
- 7 in TFT LCD
- Mounting:
- Wall mount, 3-gang box
- Material:
- Plastic
- Temperature:
- 0 to 40 deg C
- Dimensions:
- 5-1/8 in H x 9-1/16 in W x 13/16 in D
- Weight:
- Approx. 480 g
