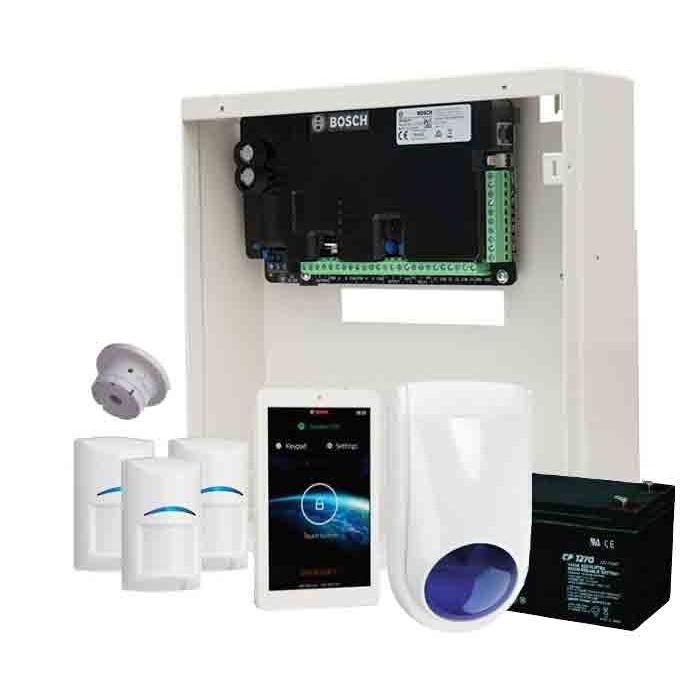

S3K-TSP-TRI-3 Bosch Solution 3000 Kit with 3 Blue Line Gen2 TriTech Detectors and 7-inch Touchscreen Keypad
The S3K-TSP-TRI-3 is a Bosch Solution 3000 alarm kit supplied with a 7-inch touchscreen keypad and 3 x Blue Line Gen2 TriTech detectors. The Solution 2000/3000 compatibility matrix confirms the Solution 3000 panel, IUI-SOL-TS7 7-inch touchscreen keypad and ISC-BDL2-W12G Blue Line Gen2 TriTech detector family included in this kit.
This kit is designed for wired or expandable residential and small commercial alarm installations requiring a Bosch control panel, a touchscreen user interface and matched TriTech motion detectors. The Solution 3000 system supports up to 16 fully programmable zones, up to four codepads, four programmable outputs and STAY/AWAY arming modes.
Key Features
- Includes a Solution 3000 wired intrusion alarm panel, a 7-inch touchscreen keypad and 3 x Blue Line Gen2 TriTech detectors.
- Combines touchscreen system control with compatible Blue Line Gen2 TriTech detectors.
- Includes the IUI-SOL-TS7 7-inch touchscreen keypad and ISC-BDL2-W12G Blue Line Gen2 TriTech detectors.
- Supports Solution 3000 arming, programming and walk-test functions.
- Compatible with supported Solution 3000 communication modules, wireless receivers and accessories.
- Catalogue Family:
- ALARM SENSOR
- Kit Type:
- Solution 3000 alarm panel kit
- Panel Series:
- Solution 3000
- Keypad:
- IUI-SOL-TS7 7-inch touchscreen keypad
- Detector Configuration:
- 3 x Blue Line Gen2 TriTech detectors
- Detector Family:
- ISC-BDL2-W12G Blue Line Gen2 TriTech
- Wiring Method:
- Hardwired kit configuration
- Panel Zones:
- Up to 16 fully programmable zones
- Codepad Support:
- Up to 4 codepads
- Programmable Outputs:
- 4 programmable outputs
- Wireless or Receiver Context:
- B810 RADION wireless receiver support shown for Solution 3000
- Product Type:
- Alarm Sensor
