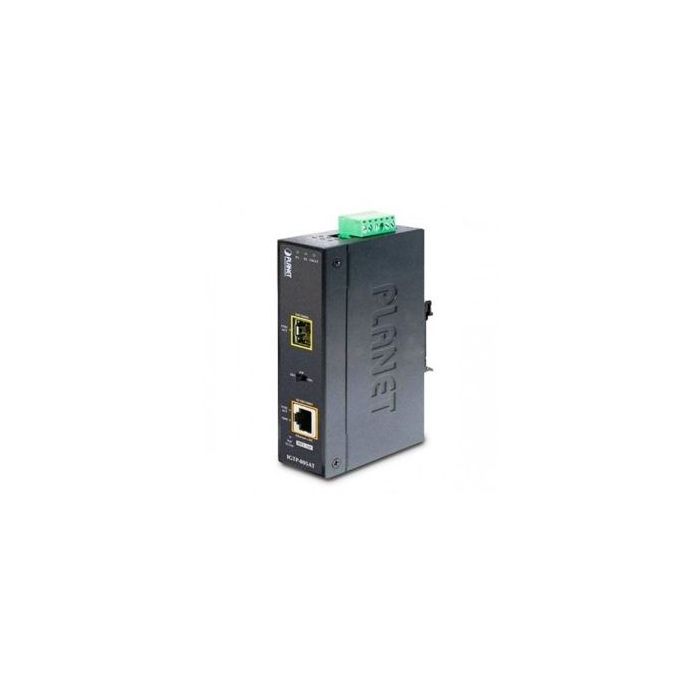

IGTP-805AT PLANET Industrial Gigabit SFP Media Converter with 802.3at PoE
The IGTP-805AT is a PLANET industrial Gigabit media converter with one 10/100/1000Base-T RJ45 port, one SFP fibre interface, and IEEE 802.3af/at PoE output. It features redundant 24/48 V DC power input, an IP30 aluminium enclosure, and supports DIN rail or wall mounting.
The media converter is designed for industrial Ethernet applications requiring Gigabit copper-to-fibre conversion and PoE power delivery. It supports operation from -40 to 75 degrees C and is suitable for industrial control cabinets, surveillance systems, and access network installations.
Key Features
- Combines Gigabit copper media conversion with PoE power delivery
- SFP fibre interface supports flexible fibre module selection for longer uplinks
- Redundant 24/48 V DC input supports industrial power availability planning
- IP30 aluminium housing and DIN rail mounting suit control cabinet installation
- Wide operating temperature range supports harsher network environments
- Catalogue Family:
- POE SWITCHES
- Product Type:
- PoE Switch
- Copper Port:
- 1 x 10/100/1000Base-T RJ45 auto-negotiation auto-MDI/MDI-X
- Fibre Interface:
- 1000Base-X SFP LC, varying by SFP module
- PoE Ports:
- 1 x IEEE 802.3at/802.3af PoE end-span
- Power Requirement:
- 24 and 48 V DC redundant power with polarity reverse protection
- PoE Output:
- 52 V DC, 15.4 W and 30 W
- PoE Budget:
- 30 W
- Enclosure:
- IP30 aluminium metal case
- Dimensions:
- 135 x 87 x 32 mm
- Weight:
- 500 g for IGTP-805AT
- Operating Temperature:
- -40 to 75 degrees C
