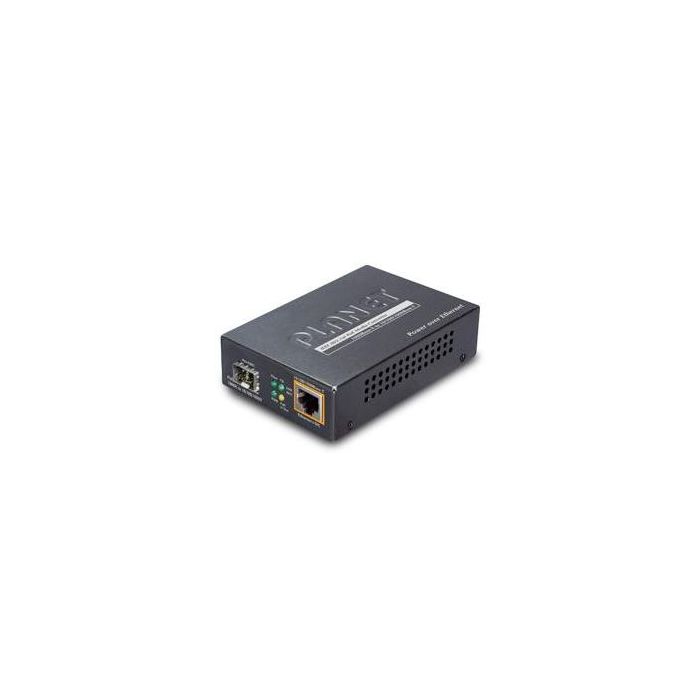

GTP-805A PLANET 802.3at PoE+ Gigabit Media Converter - 10/100/1000BASE-T to 100/1000BASE-X SFP
The GTP-805A PLANET Gigabit Ethernet 802.3at PoE+ Media Converter links a 10/100/1000BASE-T copper Ethernet port with a 100/1000BASE-X SFP fibre interface. Its RJ45 port provides data plus PoE output and supports IEEE 802.3af and IEEE 802.3at PSE operation, with up to 30 W available for a powered device.
Designed for network and security installations that need fibre connectivity with PoE at the edge, the converter supports auto-negotiation, auto MDI/MDI-X and Link Fault Pass-through for clearer fault monitoring. Fibre mode and distance depend on the selected SFP module, while the metal case and wall-mount or optional DIN-rail installation support practical deployment in equipment cabinets and field locations.
Key Features
- Extends copper Gigabit Ethernet over a flexible 100/1000BASE-X SFP fibre interface
- Delivers data and PoE output through the RJ45 port for supported powered devices
- Supports up to 30 W PoE budget for IEEE 802.3af and IEEE 802.3at applications
- Link Fault Pass-through helps identify copper or fibre link issues during operation
- Metal case with wall-mount or optional DIN-rail installation suits practical site deployment
- Catalogue Family:
- MODEMS & ROUTERS
- Product Type:
- Modems & Routers
- Copper Interface:
- 10/100/1000Base-T
- Fibre Interface:
- 1000Base-SX SC
- PoE Standard:
- IEEE 802.3af/at
