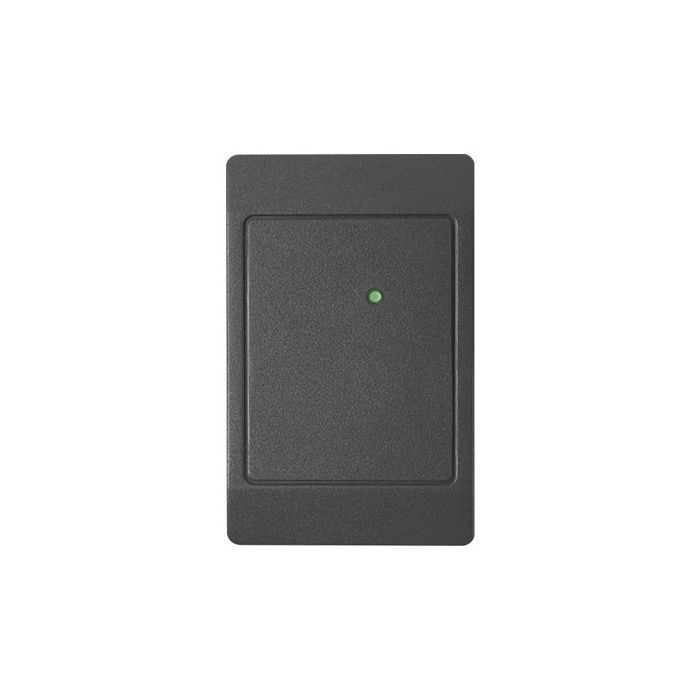

HID-THINLINE-5395 HID ThinLine II 5395 Proximity Reader
The HID-THINLINE-5395 is the HID ThinLine II 5395 low-profile 125 kHz proximity card reader with a Wiegand interface.
It suits single-gang electrical box installations or direct metal mounting where a low-profile reader is preferred. The weatherproof potted enclosure, 5-16 V DC supply and multicolour LED/beeper feedback support common indoor and outdoor access-control installations.
Key Features
- Low-profile body suits switch-box and wall-mounted reader locations.
- Wiegand interface aligns with standard access-control panel wiring.
- Weatherproof potted enclosure supports indoor or outdoor placement.
- Mounts directly on metal with minimal impact on read range performance.
- Replaceable cover design supports maintenance and finish options.
- Catalogue Family:
- READERS
- Reader Type:
- ThinLine II 125 kHz proximity reader
- Typical Read Range:
- Up to 5.5 in / 14 cm with ProxCard II, installation dependent
- Dimensions:
- 11.9 x 7.6 x 1.7 cm
- Material:
- PLASTIC
- Power Supply:
- 5-16 V DC
- Current:
- AVERAGE 30 MA AT 5 V DC / 20 MA AT 12 V DC; PEAK 110 MA AT 5 V DC / 115 MA AT 12 V DC
- Operating Temperature:
- -30 DEG C TO 65 DEG C
- Operating Humidity:
- 0% TO 95% NON-CONDENSING
- Transmit Frequency:
- 125 KHZ
- Product Type:
- READERS
