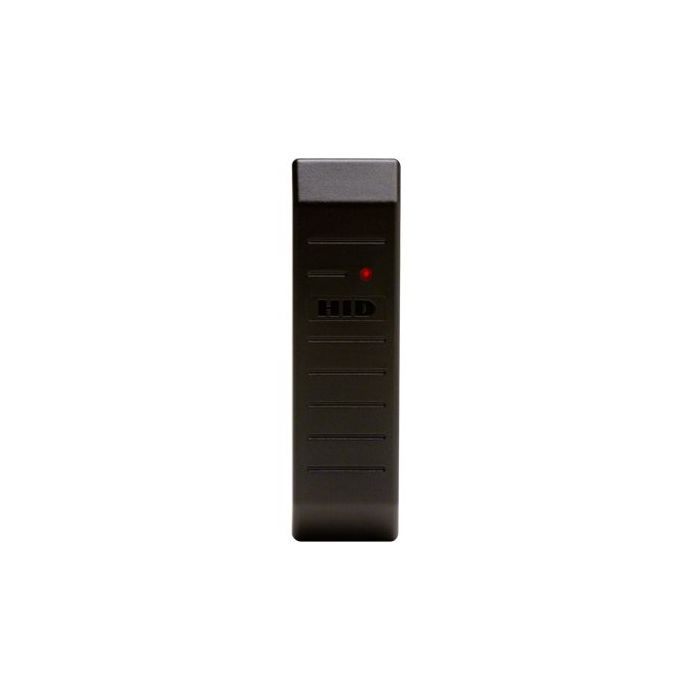

HID-MINIPROX-5365 HID MiniProx 5365 Mullion Proximity Reader
The HID-MINIPROX-5365 is an HID MiniProx 5365 mullion-mount 125 kHz proximity reader with a Wiegand interface.
It is suited to compact indoor or outdoor access points where a narrow reader profile is needed. The 5–16 V DC operating range, potted electronics and ability to mount directly onto metal with no change in read range make it suitable for upgrading from magnetic stripe to proximity access without rewiring.
Key Features
- Slim mullion format fits narrow door-frame reader locations.
- 5-16 V DC power range supports common access-control power supplies.
- Potted electronics and weatherised housing support indoor or outdoor mounting.
- Mounts directly onto metal with no stated change in read range performance.
- Wiegand interface suits standard access-control panel connections.
- Catalogue Family:
- READERS
- Model Name:
- MiniProx
- Model Number:
- 5365 Wiegand interface
- Technology:
- 125 kHz proximity reader
- Dimensions:
- 15.2 x 4.3 x 2.54 cm
- Power Supply:
- 5-16 V DC
- Current:
- Average 30 mA, peak 75 mA
- Operating Temperature:
- -30 deg C to 65 deg C
- Operating Humidity:
- 0% to 95% non-condensing
- Environmental Rating:
- IP55
- Termination:
- Pigtail or terminal strip
- Product Type:
- Readers
