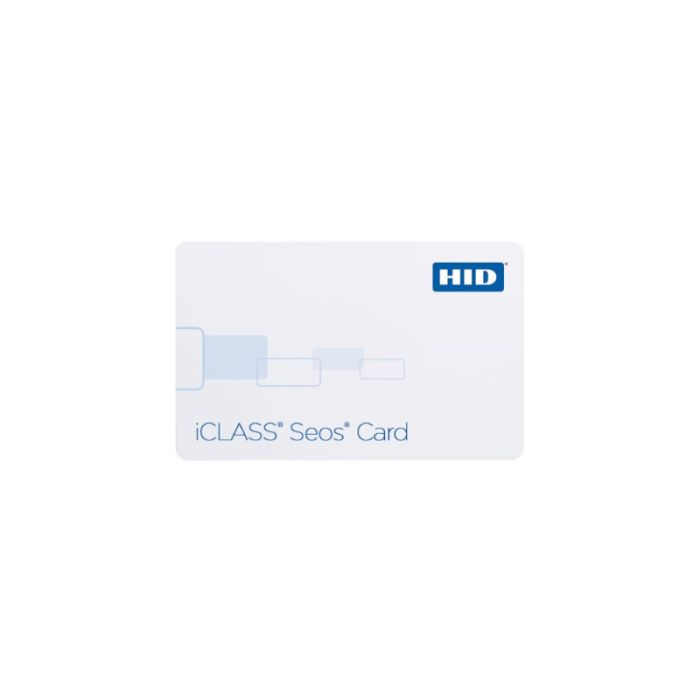

HID-5006 HID iCLASS Seos 8K Contactless Smart Card
The HID-5006 is an HID iCLASS Seos high-frequency contactless smart card with an 8K secure processor. It operates at 13.56 MHz using ISO/IEC 14443 Type A and supports the Secure Identity Object data model for physical access and other identity applications.
The card uses composite 60% PVC / 40% PET construction and is compatible with iCLASS SE and multiCLASS SE readers that support SIO-enabled data formats. iCLASS SE readers require firmware Revision E or later.
Key Features
- 8K secure processor for iCLASS Seos applications.
- 13.56 MHz contactless operation using ISO/IEC 14443 Type A.
- Supports Secure Identity Object data and multiple protected application areas.
- AES-128 cryptographic protection with secure messaging and mutual authentication.
- Composite 60% PVC / 40% PET card construction.
- Typical maximum read range of 3 to 4 inches, depending on the reader used.
- Catalogue Family:
- CARDS
- Credential Type:
- iCLASS Seos contactless smart card
- Operating Frequency:
- 13.56 MHz with ISO/IEC 14443 Type A
- Memory:
- iCLASS Seos 8K secure processor
- Typical Read Range:
- 3 to 4 in depending on reader used
- Dimensions:
- 5.40 x 8.57 x 0.084 cm
- Construction:
- Composite with 60% PVC / 40% PET
- Operating Temperature:
- -40 deg C to 70 deg C
- Weight:
- 5.5 g
- Product Type:
- Card / Fob
