HCR15-AF 4 Channel Receiver Controller Kit - 433.92 MHz

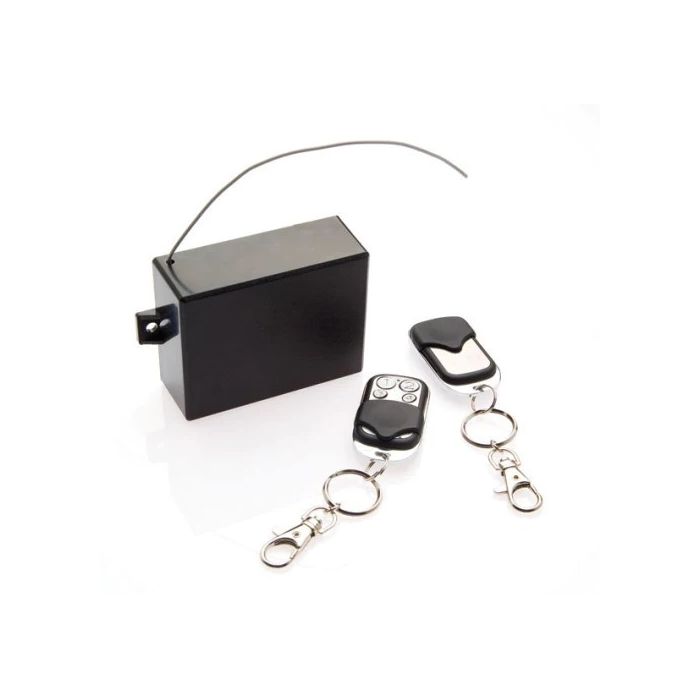

The HCR15-AF is a 4 channel UHF receiver controller kit operating at 433.92 MHz with code hopping RF transmission. The kit includes an HCR-15 receiver and two HCT-4P slide cover fobs, with four SPDT relay outputs for controlling external devices.
This receiver is suited to standalone wireless control tasks where keyfob inputs need to operate relay outputs. Its wide AC/DC supply range, code-learning setup and momentary or latching relay options give installers practical flexibility for gate, door or auxiliary control applications.
Key Features
- Four relay outputs allow separate control channels from learned keyfobs.
- Wide AC/DC supply range helps the receiver fit varied low-voltage installations.
- Code-learning design supports straightforward addition of extra transmitters.
- 433.92 MHz code hopping RF operation supports secure wireless signalling.
- ABS bulkhead case keeps the receiver compact for equipment mounting areas.
- Catalogue Family:
- CARDS
- Operating Voltage:
- 9 VDC to 24 VDC or 9 VAC to 24 VAC
- Current At 12 VDC:
- 14 mA standby; 56 mA with all relays active
- Output Channels:
- 4
- Output Ratings:
- SPDT relay, 1 A switching maximum at 24 VDC
- RF Operating Frequency:
- 433.92 MHz
- RF Signal Type:
- On-off keying with Keeloq code hopping
- Learning Capacity:
- 170 fobs
- Dimensions:
- 108 mm x 70 mm x 34 mm
- Case Material:
- ABS plastic
- Kit Contents:
- HCR-15 receiver and two HCT-4P fobs
- Product Type:
- Card / Fob
