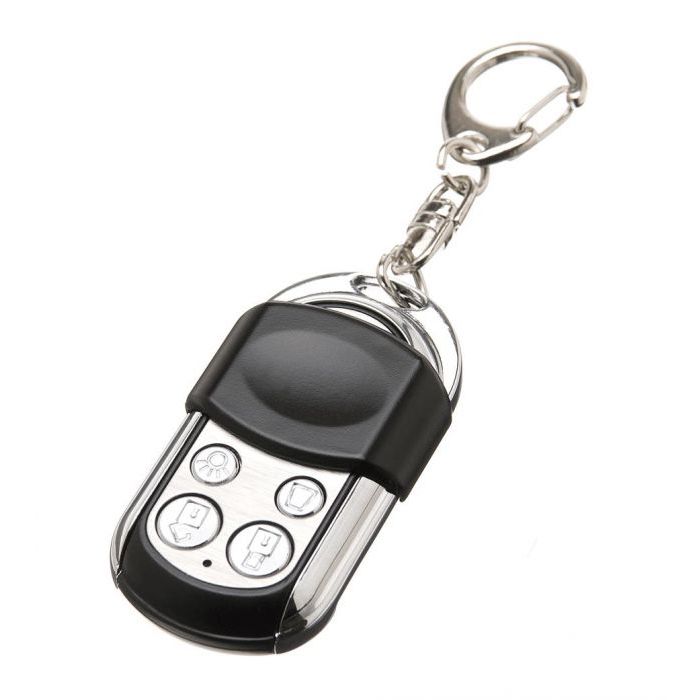

HCT-4 4 Button Keyfob for Bosch Control Panels
The HCT-4 is a four-button keyfob for Bosch RF arming kit operation with the WE800EV2 receiver context. It provides code hopping RF security, robust keyfobs, easy installation, a 433.92 MHz operating frequency and a kit context for Solution 8xx and Solution 2000/3000/4000 series control panels.
It supports convenient ON/OFF control and external device control through receiver relay capability.
Key Features
- Four-button keyfob for convenient remote security control.
- Operates at 433.92 MHz using code hopping RF security.
- Designed for use with the WE800EV2 receiver.
- Compatible with Bosch Solution 8xx and Solution 2000/3000/4000 series control panels.
- When used with the WE800EV2 receiver, supports control of up to two external devices via the receiver's onboard relays.
- Catalogue Family:
- CARDS
- System:
- WE800EV2KIT receiver with keyfobs
- Operating Frequency:
- 433.92 MHz
- Receiver Channels:
- 4
- Receiver Operating Voltage:
- 5 V DC from control panel; +12 V relay terminal 9 V DC to 15 V DC
- Receiver Current:
- 4.5 mA standby; 45 mA with both relays operating
- Relay Rating:
- SPDT 1 Amp maximum carry at 12 V DC
- Keyfob Battery:
- CR2032 x 2
- Product Type:
- Card / Fob
