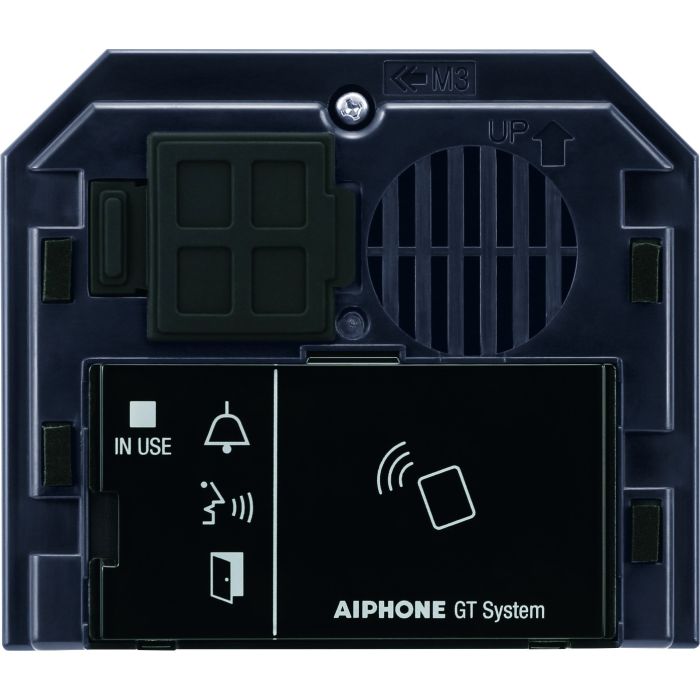

GTDBVN Aiphone GT Audio Module With NFC Reader
The GTDBVN is an audio module with NFC reader for Aiphone GT Series modular entrance stations. It is the GT-DB-VN NFC-equipped audio module and supports open-voice handsfree communication in the GT audio module group.
It is suited to GT modular entrances where the audio section also needs the NFC reader variant. The module uses the GT/GF modular box and front-frame arrangement with common cabling for the entrance station.
Key Features
- Combines GT entrance-station audio with the NFC reader variant.
- Open-voice handsfree operation supports direct visitor communication at the panel.
- Fits within the GT/GF modular box and front-frame station arrangement.
- Common two single-pair wiring aligns with the GT module cabling approach.
- Self-extinguishing ABS resin material suits the GT-DB-VN audio module.
- Catalogue Family:
- INTERCOM
- Model:
- GTDBVN
- Product Type:
- Intercom
- System:
- Aiphone GT Series modular entrance station
- Communication:
- Open voice hands-free communication
- Wiring:
- Two single-pair cable common
- Cable Type:
- 2-conductor solid copper non-braided PE insulated 0.65-1.0 mm
- Mounting Context:
- GF-2B, GF-3B, GT-4B boxes and GF-2F, GF-3F, GT-4F frames
- Material:
- Plastic
