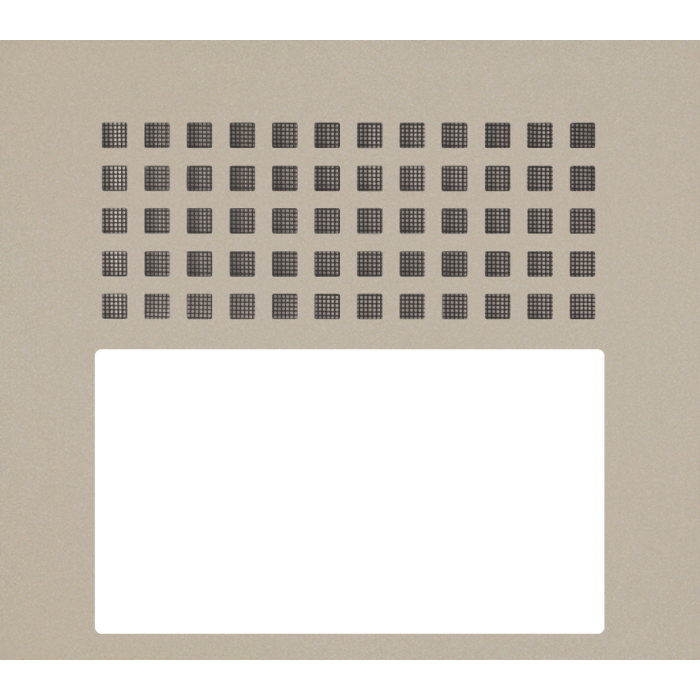

GTDBP Aiphone GT Audio Module Panel
The GTDBP is an audio panel for Aiphone GT Series modular entrance station audio modules. It mounts on GT-4F, GF-3F and GF-2F front frames and is used for GT-DB, GT-DB-V and GT-DB-VN audio modules.
It is suited to modular entrances where the audio module needs a vandal-resistant zinc die cast panel. The panel-specific drawing provides clear dimensions, colour, weight and material details for installation reference.
Key Features
- Provides the front audio panel for GT audio module variants.
- Zinc die cast construction gives the panel a metal body.
- Vandal-resistant configuration suits exposed entrance station panel locations.
- Mounts to the listed GT/GF front frames for modular entrance station assembly.
- Compact panel dimensions help with component matching in existing GT layouts.
- Catalogue Family:
- INTERCOM
- Model:
- GTDBP
- Product Type:
- Intercom
- Mounting:
- Mounts on GT-4F, GF-3F and GF-2F front frames
- Material:
- Zinc die cast
- Configuration:
- Vandal-resistant
- Unit Colour:
- Pale beige mica metallic
- Dimensions:
- 94.9 x 109.7 x 7.9 mm
- Weight:
- Approx. 95 g
- Used for:
- GT-DB, GT-DB-V and GT-DB-VN audio modules
