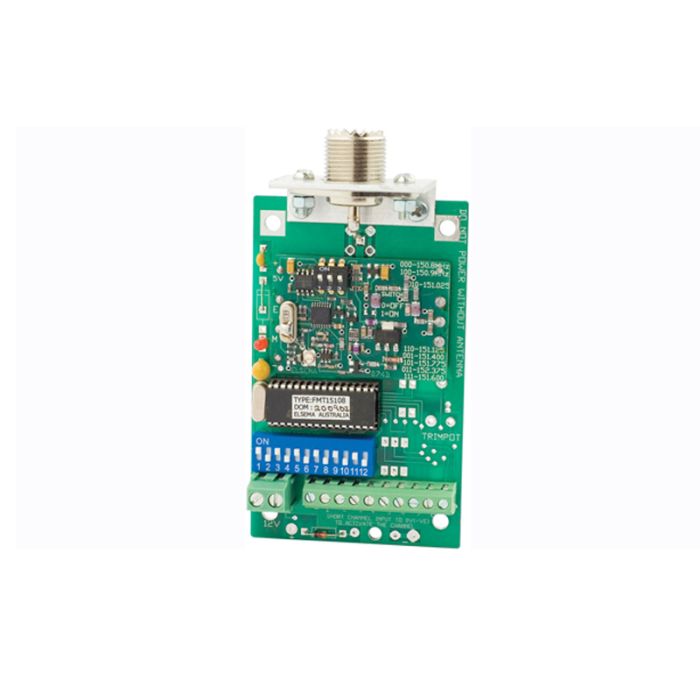

FMT15108 Elsema 151 MHz Transmitter - 8 Channel No Case
The FMT15108 is the 8 channel no-case version in Elsema's 151 MHz transmitter range and a 151.6 MHz radio transmitter PCB with 100 mW RF output, 11x13.6 VDC operation, selectable frequencies, and voltage-free contact closure inputs.
Suitable for industrial control, telemetry, security alarm, and other long-range wireless control applications. It is compatible with FMR151 Series receivers and intended for installation within a suitable enclosure.
Key Features
- Eight-channel PCB format supports multiple functions from one transmitter assembly.
- 100 mW RF output supports long-range 151 MHz control when paired with suitable equipment.
- Sleep-mode behaviour helps reduce standby consumption when inputs are off.
- FMR151 compatibility supports receiver matching across the Elsema range.
- Catalogue Family:
- POWER SUPPLY
- Product Family:
- FMT151 transmitter
- Channels:
- 8
- Product Form:
- No case version, PCB assembly
- Power Supply:
- 11 to 13.6 V DC; absolute maximum 14 V DC
- Current Consumption:
- Nominal 85 mA transmitting; 12 mA standby; 10 uA sleep mode
- Operating Frequency:
- 151.6 MHz with 8 selectable frequencies
- RF Output Power:
- 100 mW into 50 ohm SO239 socket
- PCB Dimensions:
- 90 x 56 x 15 mm
- Product Type:
- Power Supply
