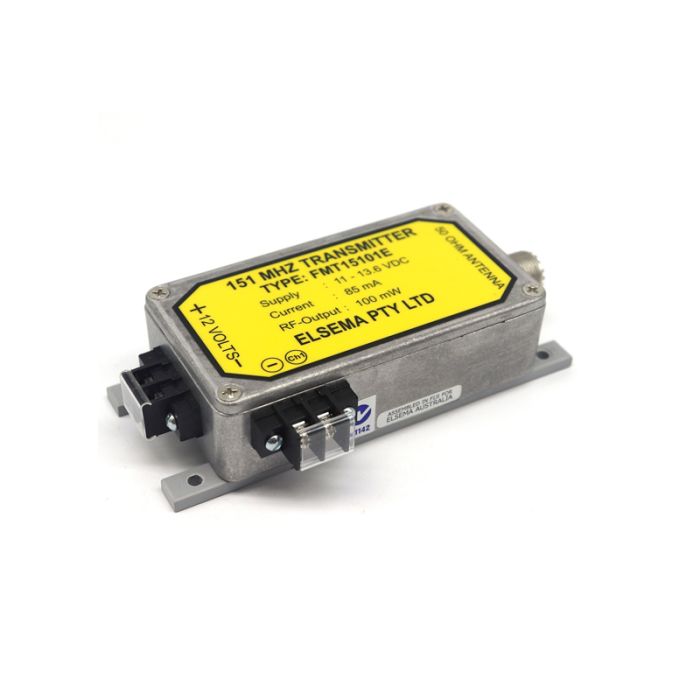

FMT15101E Elsema 151 MHz Enclosed Transmitter - 1 Channel
The FMT15101E is the enclosed 1 channel model in Elsema's FMT151 151 MHz transmitter range and 151.6 MHz radio transmitter with 12 VDC operation, selectable frequencies, and voltage-free contact closure inputs.
Suitable for pump control, long-range panic buttons, agricultural control, security alarm, and telemetry applications. It is compatible with FMR151 Series receivers and supplied in an enclosed housing.
Key Features
- Single input channel supports one long-range control or alarm function.
- 151 MHz narrow-band transmitter design is suited to industrial remote-control environments.
- Voltage-free contact input works with switches, push buttons and similar dry contacts.
- Selectable transmitter modes allow off-delay, continuous or burst-style operation.
- FMR151 receiver compatibility keeps the system within the Elsema range.
- Catalogue Family:
- POWER SUPPLY
- Product Family:
- FMT151 enclosed transmitter
- Channels:
- 1
- Power Supply:
- 12 V DC; absolute maximum 14 V DC
- Current Consumption:
- Nominal 85 mA transmitting; 12 mA standby
- Operating Frequency:
- 151.6 MHz with 8 selectable frequencies
- Operating Temperature:
- 0 to 50 degrees C
- Dimensions:
- 140 x 60 x 34 mm enclosed
- Usable Operating Range:
- Up to 5000 m depending on installation and antenna
- Product Type:
- Power Supply
