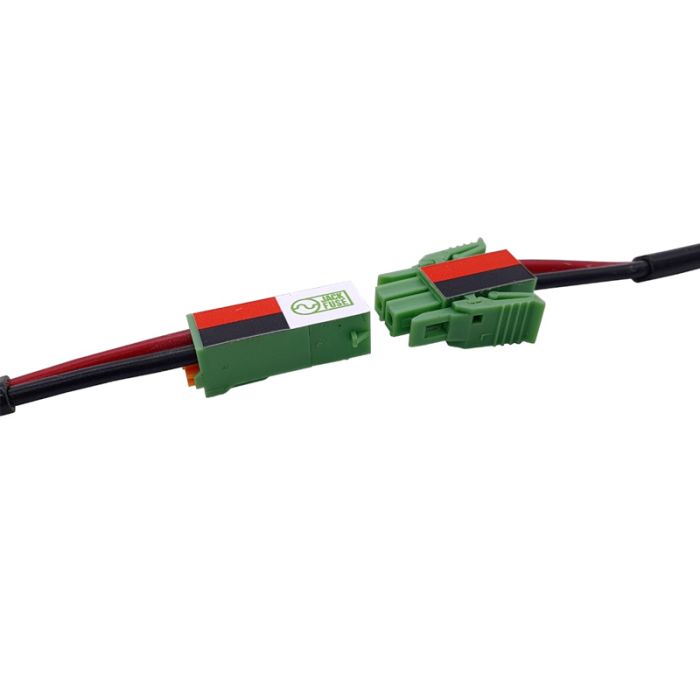

FAST-L2J 2-Way Pluggable Quick Connect Joiner for Power Cable - Pack of 10
The FAST-L2J is a two-part, 2-way pluggable quick connect terminal block for power cable connections in the FAST Security Connector System. It accepts large gauge power cable, supports solid or stranded conductors, and is primarily used to connect power cables to electric locks without solder, crimps or screw terminals.
Designed for access control and security installations, the joiner helps installers make faster and more consistent lock power connections using secure spring clamp termination. Its compact FAST connector format suits confined spaces such as wall cavities, duct and door frames, with each pack supplied as 10 connectors.
Key Features
- Speeds up lock power cable termination with a strip, twist and insert connection process
- Helps reduce wiring faults associated with traditional solder, crimp and screw-terminal methods
- Supports efficient service replacement through quick removal and reconnection of equipment
- Fits neatly into confined access control installation spaces
- Provides a reusable connection point for solid or stranded power conductors
- Catalogue Family:
- INSTALLATION TOOLS
- Product Type:
- Installation Tools
- Primary Use:
- Quick connection of power cables to electric locks
- Conductor Size:
- 0.08-1.5 mm² (28-16 AWG)
- Maximum Current:
- 6 A
- Suitable Conductor Types:
- Solid and stranded conductors
- Dimensions:
- 40 x 18 x 8 mm (L x W x H)
- Primary Materials:
- Polyamide 46, fiberglass, polyolefin
- Compliance References:
- RoHS compliant; AUS/NZ (RMC-EMC) 61000.6.3 compliant
- Country of Origin:
- China
- Pack Quantity:
- Pack of 10
