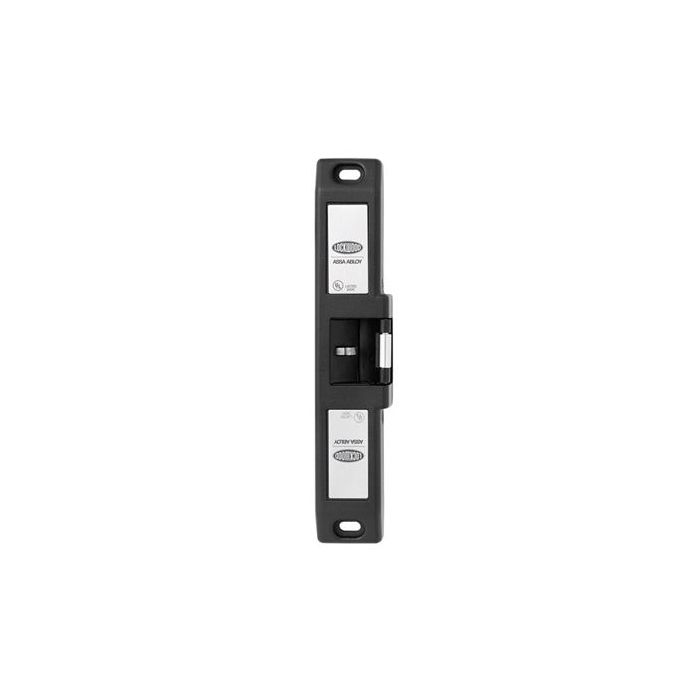

ES2600 Lockwood Padde ES2600 Panic Bar Monitored Electric Strike
The ES2600 is a Lockwood Padde surface mounted monitored electric strike designed for panic bars fitted to emergency doors. Available in 12 VDC and 24 VDC monitored variants with stainless steel construction, on-site selection of fail safe or fail secure operation, and a 650 kg static holding force.
When used with a standard access control system, the ES2600 converts exit-only panic-bar doors into controlled access doors from the secure side. Compatible with 15 mm to 20 mm Pullman latch projection and features solenoid, door and latch monitoring.
Key Features
- Purpose-built panic bar strike format supports emergency-door access control
- Surface mount installation suits open-out egress door sets
- On-site fail safe or fail secure configuration helps match the door requirement
- Solenoid and latch monitoring provide useful state feedback to control systems
- Shallow body depth helps reduce frame penetration during installation
- Catalogue Family:
- LOCKING
- Model:
- ES2600
- Product Type:
- Locking
- Voltage:
- 12 VDC or 24 VDC variants
- Current:
- 175 mA @ 12 VDC; 88 mA @ 24 VDC
- Monitoring:
- Solenoid monitor; door/latch monitor
- Holding Force:
- 650 kg static strength rating
- Endurance:
- Cycle tested to 1,000,000 operations
- Latch Suitability:
- 15 mm to 20 mm Pullman latch
- Environment:
- -20 degrees C to +60 degrees C
- Camera Body:
- Solid stainless steel construction
- Dimensions Shown:
- 213 mm x 40 mm x 70 mm
