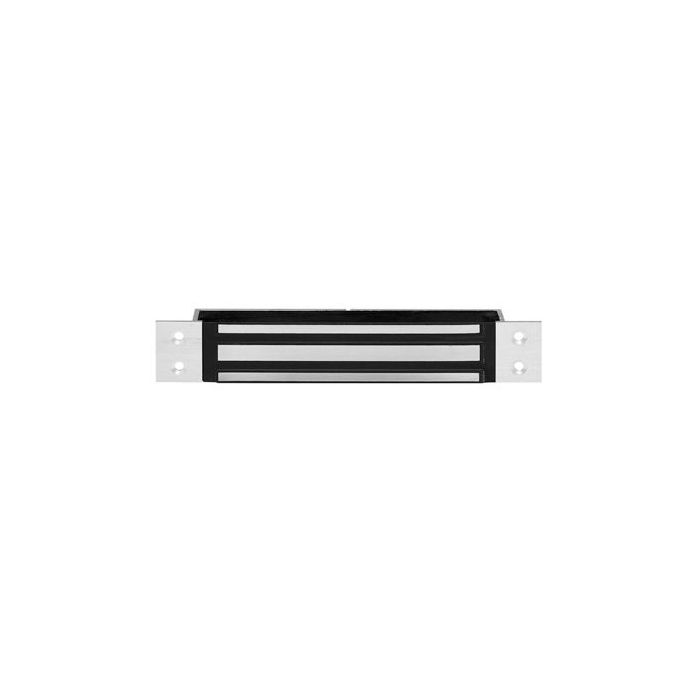

EMZ4-RSM Lockwood Padde Series Z4 Recessed Single Monitored Electromagnetic Lock - 12/24 V DC
The Lockwood Padde Series Z4 EMZ4-RSM recessed single monitored electromagnetic lock provides a holding force of 250 to 280 kg. Features include an aluminium case, heavy-duty electromagnet, site-selectable 12 or 24 V DC operation and hall-effect status monitoring for compatible access-control systems.
Suitable for concealed recessed installation in swing and sliding doors. Fail-safe operation releases the lock when power is removed. Smart electronics eliminate residual magnetism for instantaneous release. The Z4 recessed electromagnetic lock range is CSIRO approved for use on fire doors.
Key Features
- Suitable for new installations and retrofit applications
- Self-aligning armature plate accommodates door drop
- Silent operation without humming or buzzing
- Fixing options for wood, aluminium and steel doors
- Lockwood five-year Tricare warranty
- Monitored:
- MONITORED
- Holding Force:
- 250-280KG
- PTO/PTL:
- POWER TO LOCK (FAIL SAFE)
- Product Type:
- LOCKING
- Series:
- PADDE SERIES
- Elec/Mech:
- ELECTRIC
- Device Type:
- SINGLE MAGNECTIC LOCK
- Mounting:
- RECESSED MOUNT
- Fire Rating:
- FIRE RATED
- Power:
- 12 OR 24VDC
