LOCKWOOD

PADDE EMZ4-DM DOUBLE DOOR SLIMLINE MAG

SKU: ASAEMZ4-DM Supplier SKU: EMZ4-DM

KEY FEATURES

Product Downloads

Description
Download
EMZ4-DM Reference
EMZ4-DM Installation Manual

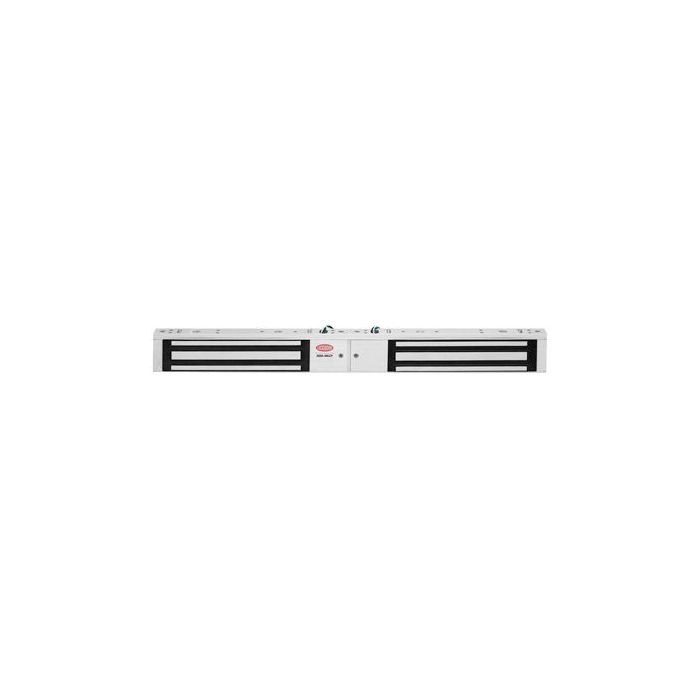

EMZ4-DM Lockwood Padde Series Z4 Double Monitored Electromagnetic Lock - 12/24 V DC

The EMZ4-DM is a Lockwood Padde Series Z4 double monitored electromagnetic lock for double swing-door access-control installations. It provides a holding force of 500 to 560 kg with site-selectable 12 or 24 V DC operation. The double Z4 assembly features an aluminium base and a heavy-duty electromagnet.

The lock is suitable for surface mounting on inswing and outswing doors. It operates in fail-safe mode, releasing when power is removed. Hall/bond monitoring reports powered and magnetically bonded lock status, while an integrated reed switch independently monitors door position. The model is fire rated for up to four hours on fire door assemblies in accordance with AS 1905.1.2005.

Key Features

  • Suitable for new installations and retrofit access-control upgrades
  • Self-aligning armature plate accommodates door drop
  • Silent operation without humming or buzzing
  • Fixing options for wood, aluminium, steel and glass door applications
  • Lockwood five-year Tricare warranty
60 MONTHS
Monitored:
MONITORED
Holding Force:
500-560KG
PTO/PTL:
POWER TO LOCK (FAIL SAFE)
Mounting:
SURFACE MOUNT
Product Type:
LOCKING
Series:
PADDE SERIES
Elec/Mech:
ELECTRIC
Device Type:
DOUBLE MAGNECTIC LOCK
Lock Status Sensor (LSS):
YES
Door Status Sensor (DSS):
YES
Fire Rating:
4 HOUR FIRE RATING
Power:
12 OR 24VDC
