EBXL+2-1 XL Extra Battery Module for XL+2000 - 1 Extra String

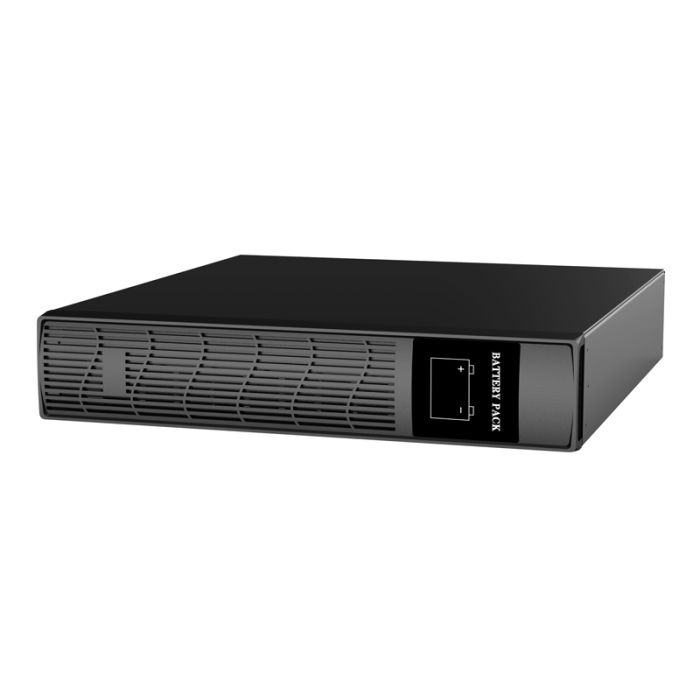

The EBXL+2-1 is an external battery module designed to extend the runtime of XL+2000 UPS systems. It is part of the XL+ expandable pure sine wave line-interactive UPS platform and provides a one extra string battery expansion option for compatible XL+2000 installations.
The module supports applications that require increased backup time while remaining within the XL+ UPS family. It is suitable for protecting loads such as roller doors, shutters, motors, CCTV and other industrial equipment.
Key Features
- Extends runtime for compatible XL+2000 UPS systems.
- One extra string battery expansion for increased backup capacity.
- Compatible with the XL+ expandable UPS platform.
- Supports backup power for roller doors, shutters, motors, CCTV and other industrial equipment.
- Suitable for rack and tower XL+ UPS installations.
- Catalogue Family:
- UPS
- Compatible UPS Family:
- XL+2000
- Configuration:
- 1 extra string
- Runtime Configuration:
- XL+2000 + EBXL+2-1
- Runtime At 1000 VA / 800 W:
- 25 minutes
- Runtime At 2000 VA / 1600 W:
- 9 minutes
- Battery Family:
- Sealed lead acid, maintenance free
- Ebxl+ Dimensions / Weight:
- 440 x 465 x 88mm (2RU) / 14-27kg
- Ebxl+ Shipping Dimensions / Weight:
- 590 x 580 x 200mm / 16-29kg
- Product Type:
- UPS
