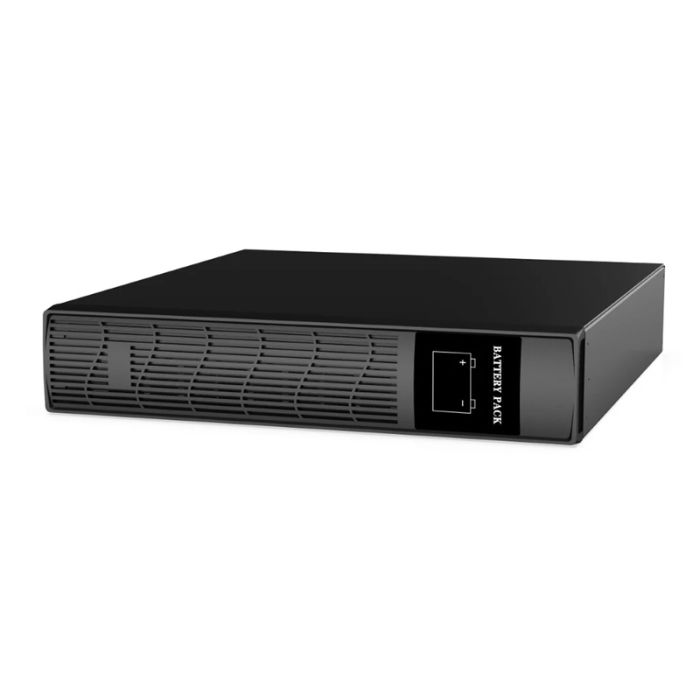

EBXL+1-2 XL Extra Battery Module for XL+1000 - 2 Extra Strings
The EBXL+1-2 is an external battery module for XL+1000 UPS installations, providing a two-extra-string runtime expansion option. It is part of the XL+ pure sine wave line-interactive UPS range with support for external battery modules.
Designed for XL+1000 systems requiring extended backup runtime, the battery module provides increased runtime for supported equipment such as CCTV systems, roller doors, motors, shutters, and other industrial loads while maintaining compatibility within the XL+ rack and tower UPS family.
Key Features
- Provides a higher runtime expansion option for XL+1000 UPS systems.
- Designed for use with the XL+ EBXL battery expansion platform.
- Supports extended backup runtime for security and industrial equipment.
- Maintains compatibility with the XL+ rack and tower UPS platform.
- Provides a scalable battery expansion path for increasing runtime requirements.
- Catalogue Family:
- UPS
- Compatible UPS Family:
- XL+1000
- Configuration:
- 2 extra strings
- Runtime Configuration:
- XL+1000 + EBXL+1-2
- Runtime At 600 VA / 480 W:
- 47 minutes
- Runtime At 1000 VA / 800 W:
- 22 minutes
- Battery Family:
- Sealed lead acid, maintenance free
- Ebxl+ Dimensions / Weight:
- 440 x 465 x 88mm (2RU) / 14-27kg
- Ebxl+ Shipping Dimensions / Weight:
- 590 x 580 x 200mm / 16-29kg
- Product Type:
- UPS
