DA-1AS Aiphone DA Series Single Tenant Two-Wire Audio Door Entry Kit

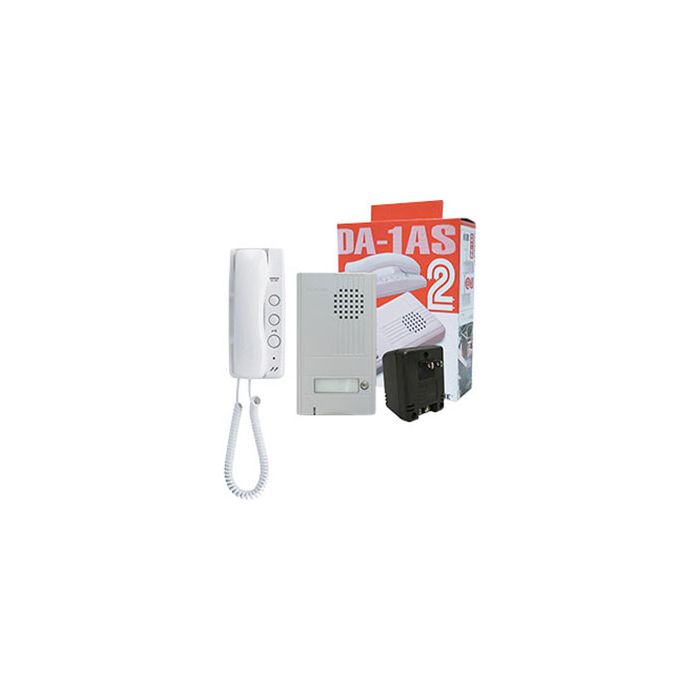

The DA-1AS is an Aiphone DA Series single tenant audio door entry box set that includes one DA-1DS door station, one DA-1MD master station and one PT-1211C power supply. It uses 15V AC power and handset full-duplex communication for private visitor conversations.
It suits residential and light commercial entry points where a simple two-wire audio door entry system is required. The DA Series platform supports visitor screening, system-powered door release, surface mount entrance station hardware and straightforward wiring between the entrance and tenant station.
Key Features
- Box-set format provides the door station, tenant station and transformer for a single entrance.
- Two-wire entrance-to-master wiring helps simplify residential or small commercial installs.
- Handset communication gives occupants private full-duplex visitor conversations.
- System-powered door release support reduces separate strike power needs in supported setups.
- Surface entrance station with backlit directory supports clear visitor call-in at the doorway.
- Catalogue Family:
- INTERCOM
- Model:
- DA-1AS
- Product Type:
- Intercom
- Kit Components:
- 1 x DA-1DS door station, 1 x DA-1MD master station, 1 x PT-1211C power supply
- Power Source:
- 15V AC - use PT-1211C
- Communication:
- Handset full-duplex
- Calling:
- Electronic tone with adjustable volume or mute
- Door Release:
- 9.5-20V AC, 70 ohm or higher resistance - use EL-12S
- Entrance to Tenant Wire Type:
- 2-conductor overall shield or 2-conductor low-cap PE insulation solid non-shielded
- Door Station / Door Strike Distance:
- 360 ft with 22 AWG or 1,020 ft with 18 AWG
- Power Supply to Tenant Distance:
- 180 ft with 22 AWG or 510 ft with 18 AWG
- Da-1md Dimensions and Weight:
- 200 H x 89 W x 63 D mm; approx. 350 g
- Entrance Station Dimensions and Weight:
- 175 H x 100 W x 22 D mm; approx. 270 g
- Entrance Station Operating Temperature:
- -10 to +60degree (+14 to +140degree)
- Master Station Operating Temperature:
- 0 to +40degree (+32 to +104degree)
