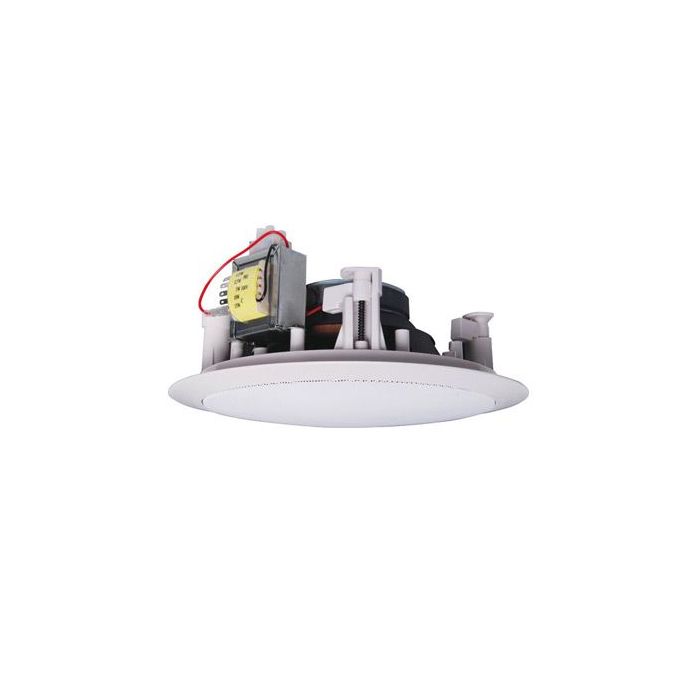

C2121 165mm 100V 15W Coaxial Fast-Fix Ceiling Speaker
The C2121 is a Redback 165mm (6.5 inch) 100V 15W coaxial Fast-Fix ceiling speaker for public address, BGM and paging installations. It uses a flip-lock mounting system, offset transformer, ABS surround and aluminium mesh grille.
It suits commercial ceiling speaker installations where higher power output is needed with a neat screw-free finished appearance. The 195mm cutout, 228mm grille diameter and 98mm mounting depth help installers plan ceiling placement.
Key Features
- Provides a higher-power 15W Fast-Fix ceiling speaker option.
- Supports neat installation with concealed flip-lock mounting.
- Suits paging and background music applications in commercial spaces.
- Offers selectable 100V transformer taps for system matching.
- Uses coaxial driver construction for the stated speaker format.
- Catalogue Family:
- SPEAKERS
- Model:
- C2121
- Power Taps:
- 1.25W, 2W, 5W, 10W, 15W
- SPL 1 W @ 1m:
- 90dB at 1kHz (+/- 2dB)
- Frequency Response:
- 55Hz-15kHz
- Connection:
- 2-way terminal block
- Grille Material:
- ABS surround, aluminium mesh grille
- Driver Construction:
- 2-way coaxial, PECC cone
- Ceiling Cutout:
- 195mm diameter
- Grille Diameter:
- 228mm diameter
- Mounting Depth:
- 98mm including ceiling tile thickness
- Overall Weight:
- 1.4kg
- Product Type:
- Speakers
