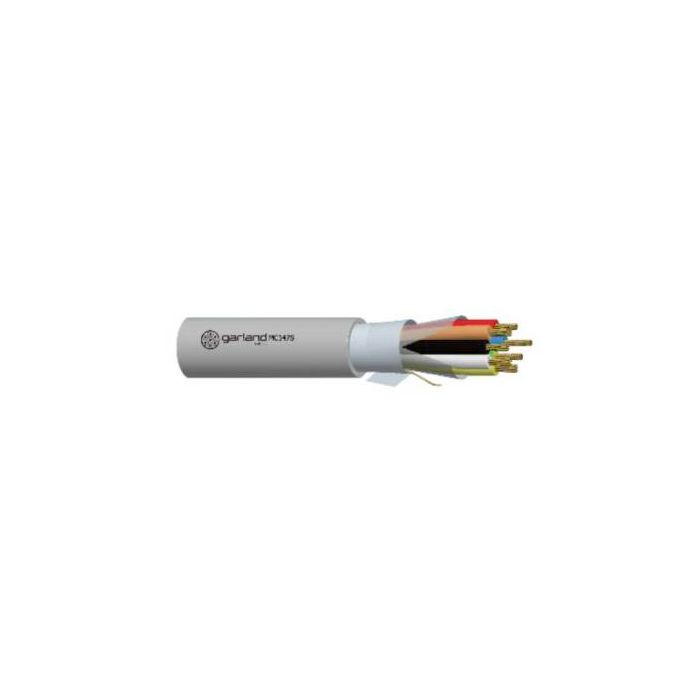

BCUGS61402-300 Radum 6 Core 14/0.20 Jelly Filled Security Cable - 300 m Drum
The Radum BCUGS61402-300 is a 300 m drum of six-core, 21 AWG jelly-filled security cable for interconnecting data terminal and communication equipment. Its stranded conductors comprise 14 x 0.20 mm bare copper strands, with polypropylene insulation, 100% polyester tape coverage and a black polyethylene sheath.
Designed for underground applications and suitable for direct burial, this ELV security cable has an operating temperature range of -30 to 70°C and a nominal outside diameter of 6.5 mm. Its bending and pulling limits provide clear installation parameters for outdoor cable routing.
Key Features
- Six-core construction consolidates multiple conductors within one security cable
- Colour-coded insulation assists core identification during installation
- Repeated sheath printing supports product identification along the cable run
- Specified bending and pulling limits guide controlled installation handling
- 300 m drum format supports extended cable runs and project planning
- Catalogue Family:
- CABLE
- Cable Type:
- SECURITY
- Conductor Detail:
- 14/0.20
- Length:
- 300 m
- Product Type:
- Cable
- Cable Filing:
- JEL FILLED
- Size:
- 14/0.20
- Single Core:
- 6 CORE
- Solid/Stranded:
- STRANDED
- Sheath:
- PE
- Cable Length (m):
- 300M
- Storage Type:
- DRUM
- Colour:
- Black
- Cable Colors:
- RED/ BLACK/ BLUE/ WHITE/ YELLOW/ GREEN
