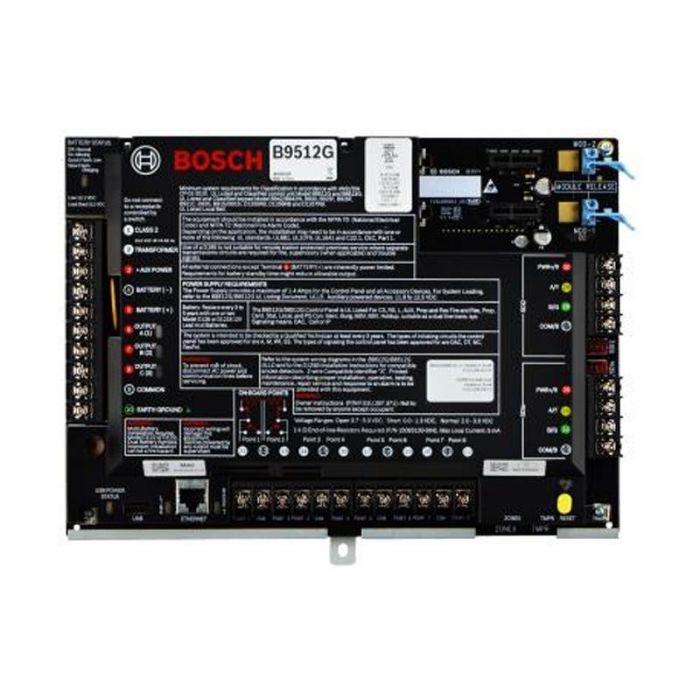

B9512G G Series IP Control Panel - 32 Areas 599 Points
The B9512G is a Bosch G Series IP control panel integrating intrusion, fire and access control in one platform. It supports up to 599 points, 32 areas, 32 doors and 2000 users, with on-board Ethernet for Conettix IP alarm communication and remote programming.
It is designed for scalable commercial installations where hardwired or wireless points, access control and modern IP communications need to be managed through a single system. Installer-friendly features such as on-board USB, Remote Programming Software support and plug-in communication modules support flexible commissioning and maintenance.
Key Features
- Large point and area capacity supports complex commercial security layouts
- Integrated intrusion, fire and access control reduces separate system handling
- On-board Ethernet supports Conettix IP communication and remote programming
- Programmable output profiles help standardise system responses
- User and keypad language options support practical multi-user operation
- Catalogue Family:
- SYSTEM COMPONENTS
- Product Type:
- System Components
- Points:
- 599
- Areas:
- 32
- Doors:
- 32
- Users:
- Up to 2000
- Ethernet:
- 10/100BASE-T
- Current Consumption:
- 180 mA to 260 mA
- Input Voltage:
- 16.5 V AC to 18 V AC
- Dimensions:
- 269.90 mm x 196.90 mm x 47.60 mm
