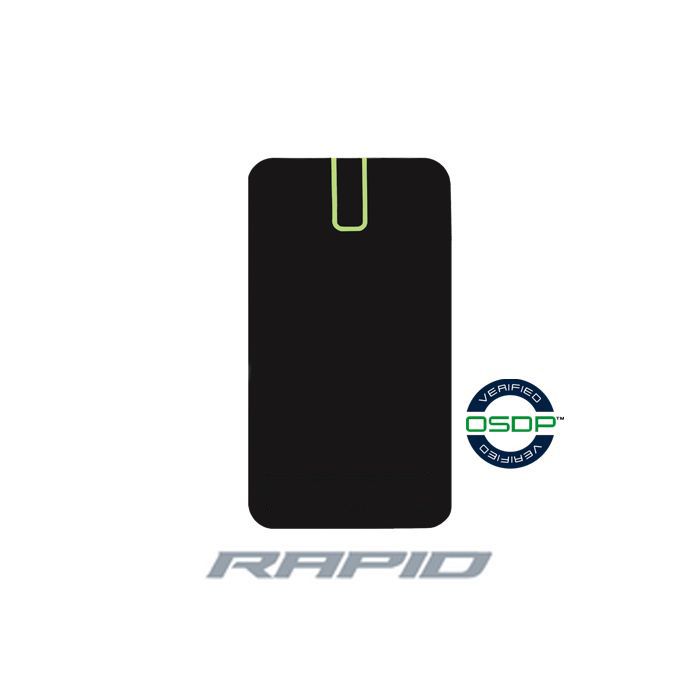

AST-RAPID-READER Astuto RAPID SL1 Encrypted Mini Reader
AST-RAPID-READER is an Astuto RAPID SL1 encrypted mini reader supporting NFC and BLE credentials, Wiegand and OSDP interfaces, SIA OSDP verification, an adjustable BLE range from 10 cm to 12 m, an IP65 rating, 9-15 VDC operation and an ABS+PC housing.
Key Features
- SL1 RAPID encryption supports a site-specific credential environment for controlled access authentication.
- NFC, RFID and adjustable BLE reading modes give users mobile and physical credential options.
- Wiegand and OSDP support helps the reader connect to new or existing access control panels.
- Compact IP65-rated design suits reader locations where a slim and protected device is required.
- Long OSDP wiring distance gives installers flexibility on larger access control layouts.
- Catalogue Family:
- READERS
- Product Type:
- Readers
- Encryption:
- SL1
- Read Range:
- NFC and RFID up to 5 cm; BLE adjustable 10 cm to 12 m
- BLE:
- Bluetooth 4.x and Bluetooth 5.x at 2.45 GHz
- Transmit Frequency:
- 13.56 MHz
- Case Material:
- ABS+PC plastic
- Colour:
- Black/Grey
- Dimensions:
- 45 x 80 x 12.5 mm
- Weight:
- 70 g
- Operating Environment:
- -40 degrees C to +60 degrees C and IP65
- Power Supply:
- 9-15 VDC with max current up to 80 mA
- Interfaces:
- OSDP SIA OSDP Verified and Wiegand 26 default plus 32, 34, 37, 40, 42, 56, 58 and 64 bit
- Wiring Distance:
- Up to 150 m for Wiegand and up to 1000 m for OSDP
- Warranty:
- Limited lifetime
- Approvals:
- RCM, AS/NZS 4268:2017, EN 300 328, EN 300 330, EN 55032 and CE
