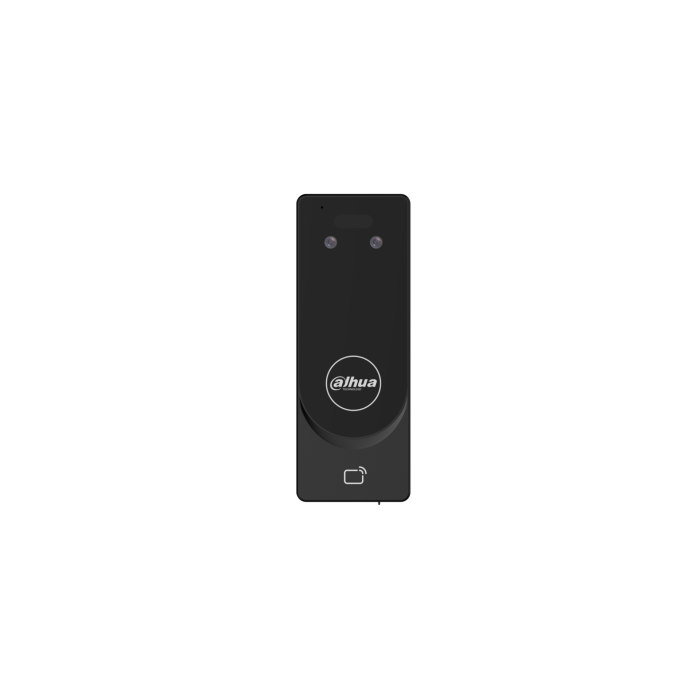

ASI3103F-W Dahua QR Code Face Recognition Access Controller
The ASI3103F-W is a Dahua standalone access controller supporting QR code, face recognition, card, remote and Bluetooth verification. It features a 2 MP CMOS HD dual-lens camera, WDR, auto IR, speaker, voice prompts and a PC+ABS housing.
Supports IC card credentials, QR code, face recognition, Bluetooth and remote verification. The controller supports 10,000 users, 10,000 faces, 10,000 cards, 10,000 Bluetooth cards and 300,000 logs.
Key Features
- Supports QR code, face recognition, card, remote and Bluetooth verification
- 2 MP HD dual-lens camera with WDR, auto IR, speaker and voice prompts
- Supports IC card credentials, QR code, Bluetooth and remote verification
- Supports TCP/IP, Wi-Fi and access-control interfaces
- IP65-rated enclosure for indoor and outdoor installation
- Catalogue Family:
- READERS
- Model:
- DHI-ASI3103F-W
- Product Type:
- Readers
- Camera:
- 2 MP CMOS HD dual-lens camera
- Verification Methods:
- Card, remote, QR code, face recognition and Bluetooth
- Card Type:
- IC card; Desfire card EV3, compatible with Dahua card by default
- RFID Frequency:
- 13.56 MHz
- Face Recognition Distance:
- 0.3 m to 1.5 m
- Face Recognition Accuracy:
- 99.90%
- Face Recognition Time:
- 0.2 s
- User Capacity:
- 10,000 users, 10,000 faces, 10,000 cards and 10,000 Bluetooth cards
- Record Capacity:
- 300,000 logs
- Network:
- TCP/IP and Wi-Fi
- Ports:
- RS-485, Wiegand, USB 2.0, Ethernet, alarm input, alarm output, exit button, door status detection and lock control
- Power Supply:
- 12 VDC, 2 A
- Power Output Port:
- 12 V, 1 A
- Protection:
- IP65
- Power Consumption:
- ≤24 W
- Dimensions:
- 155.0 mm H x 57.5 mm W x 24.8 mm T
- Operating Temperature:
- -30°C to +60°C
- Operating Humidity:
- 0%-90% RH, non-condensing
- Operating Environment:
- Indoor and outdoor
- Gross Weight:
- 0.5 kg
- Installation:
- Wall mount, floor bracket mount or turnstile mount
- Standard Accessory:
- Wall-mounted bracket
