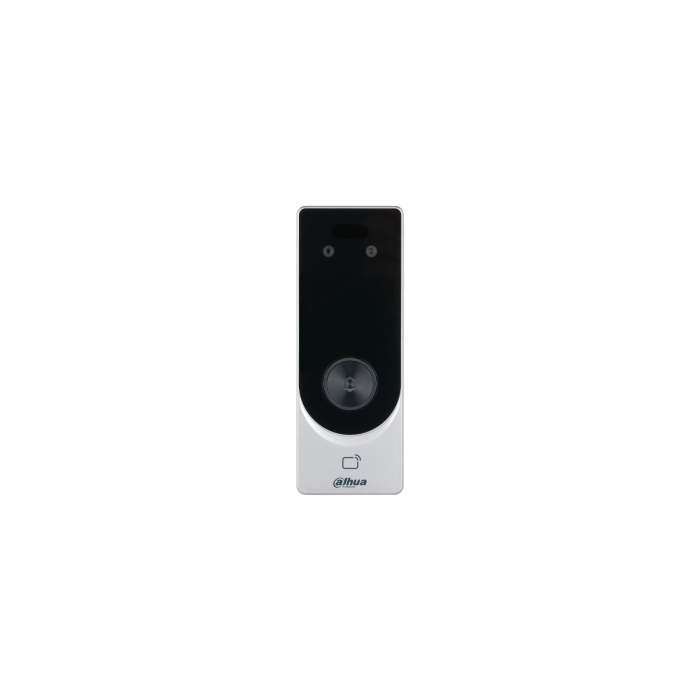

ASI3103F-MEW Dahua QR Code Face Recognition Access Controller
The ASI3103F-MEW is a Dahua standalone access controller supporting QR code, face recognition, card, remote and Bluetooth verification. It features a 2 MP CMOS HD dual-lens camera, WDR, auto IR, speaker, voice prompts and a PC+ABS housing.
Supports IC and ID cards, visitor QR codes, a doorbell function and remote operation through the companion app. The controller supports 10,000 users, 10,000 faces, 10,000 cards, 10,000 Bluetooth cards and 300,000 logs.
Key Features
- Supports QR code, face recognition, card, remote and Bluetooth verification
- 2 MP HD dual-lens camera with WDR, auto IR, speaker and voice prompts
- Supports IC cards, ID cards, visitor QR codes and doorbell function
- Supports TCP/IP, Wi-Fi and access-control interfaces
- IP65-rated enclosure for indoor and outdoor installation
- Catalogue Family:
- READERS
- Model:
- DHI-ASI3103F-MEW
- Product Type:
- Readers
- Camera:
- 2 MP CMOS HD dual-lens camera
- Verification Methods:
- Card, remote, QR code, face recognition and Bluetooth
- Card Type:
- IC card; ID card; Desfire card EV3, compatible with Dahua card by default
- RFID Frequency:
- IC: 13.56 MHz; ID: 125 kHz
- Face Recognition Distance:
- 0.3 m to 1.5 m
- Face Recognition Accuracy:
- 99.90%
- Face Recognition Time:
- 0.2 s
- User Capacity:
- 10,000 users, 10,000 faces, 10,000 cards and 10,000 Bluetooth cards
- Record Capacity:
- 300,000 logs
- Network:
- TCP/IP and Wi-Fi
- Ports:
- RS-485, Wiegand, USB 2.0, Ethernet, alarm input, alarm output, exit button, door status detection and lock control
- Power Supply:
- 12 VDC, 2 A
- Power Output Port:
- 12 V, 1 A
- Protection:
- IP65
- Power Consumption:
- ≤24 W
- Dimensions:
- 155.0 mm H x 57.5 mm W x 24.8 mm T
- Operating Temperature:
- -30°C to +60°C
- Operating Humidity:
- 0%-90% RH, non-condensing
- Operating Environment:
- Indoor and outdoor
- Gross Weight:
- 0.5 kg
- Installation:
- Wall mount, floor bracket mount or turnstile mount
- Standard Accessory:
- Wall-mounted bracket
